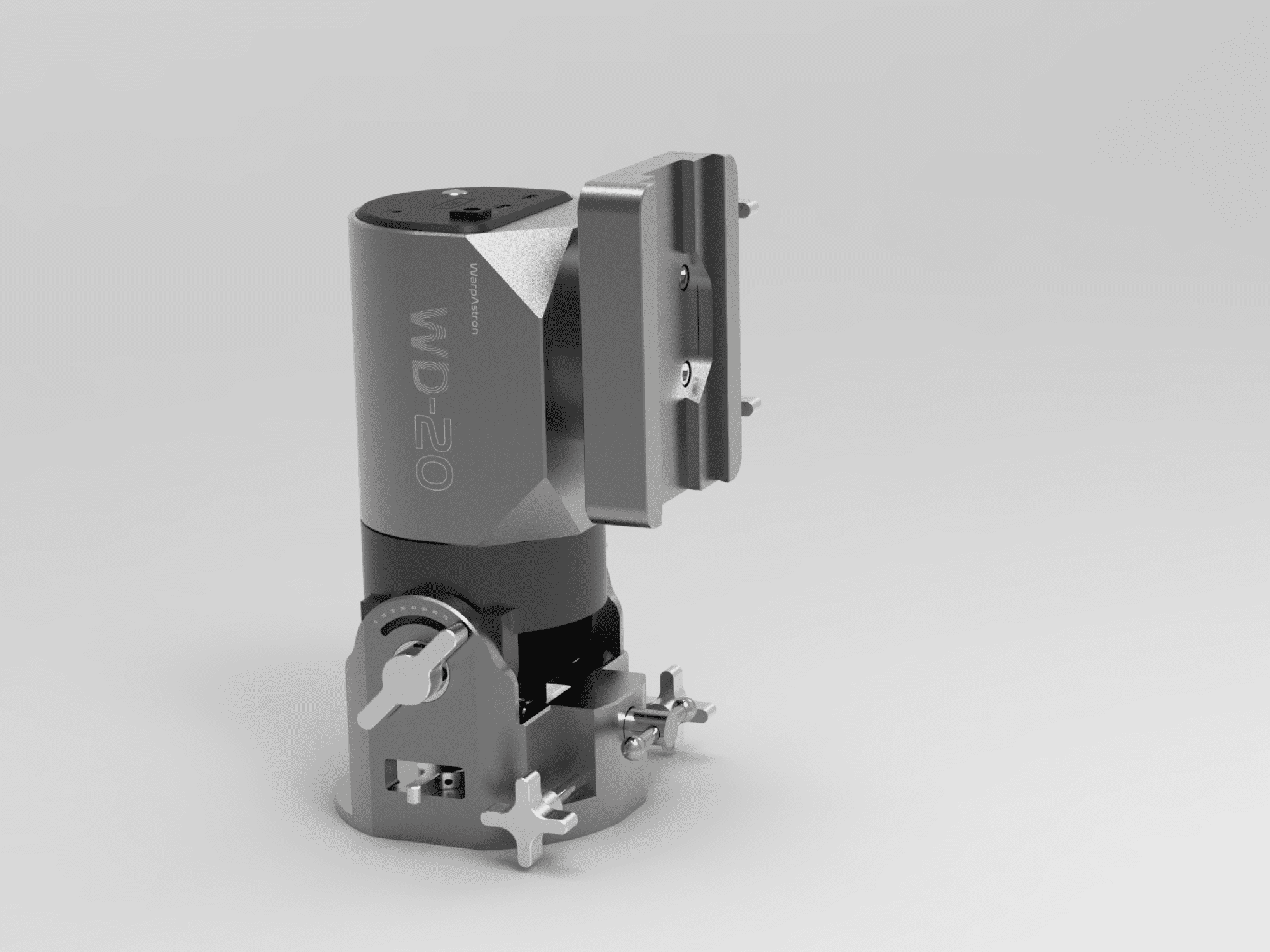

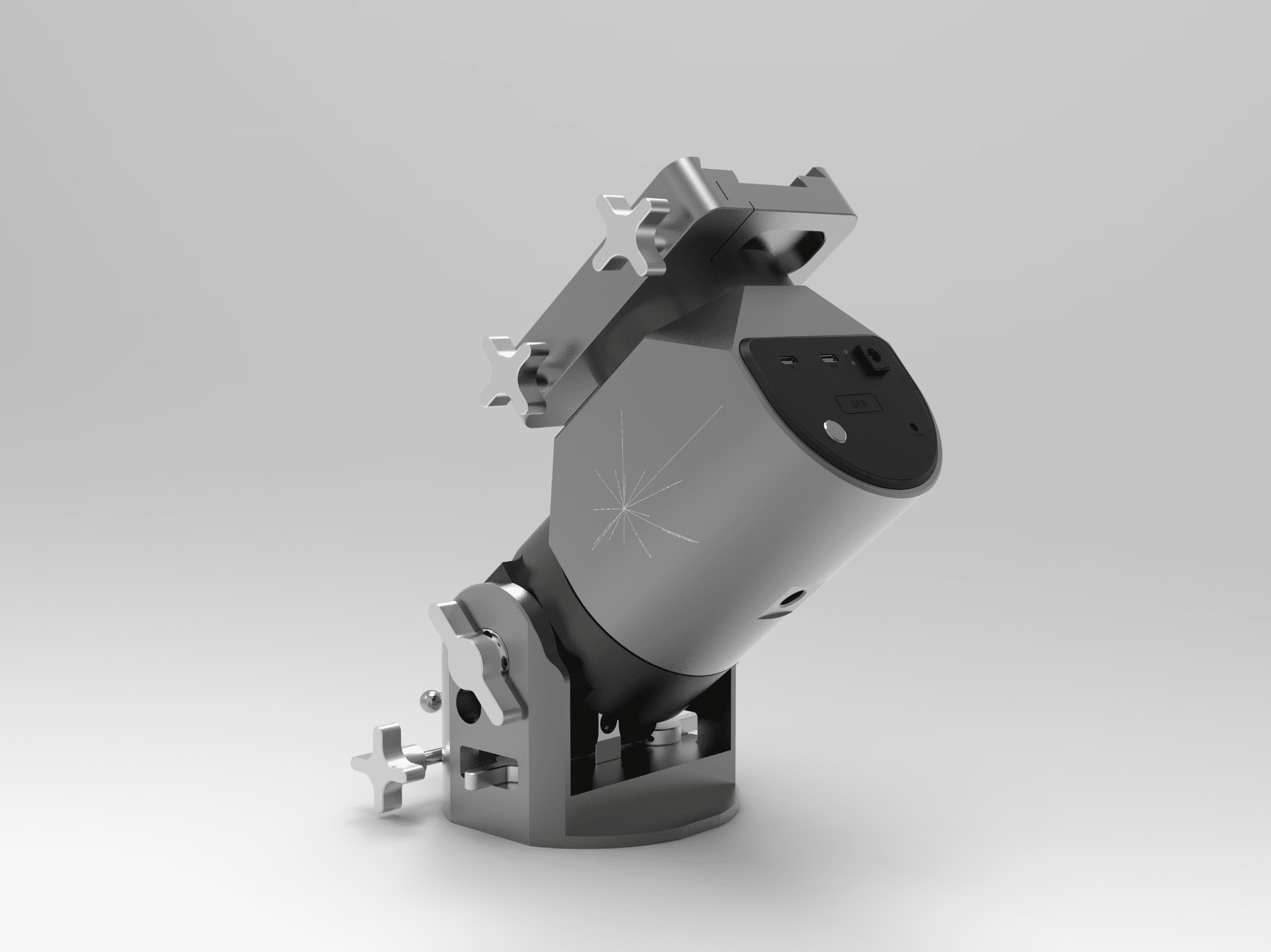

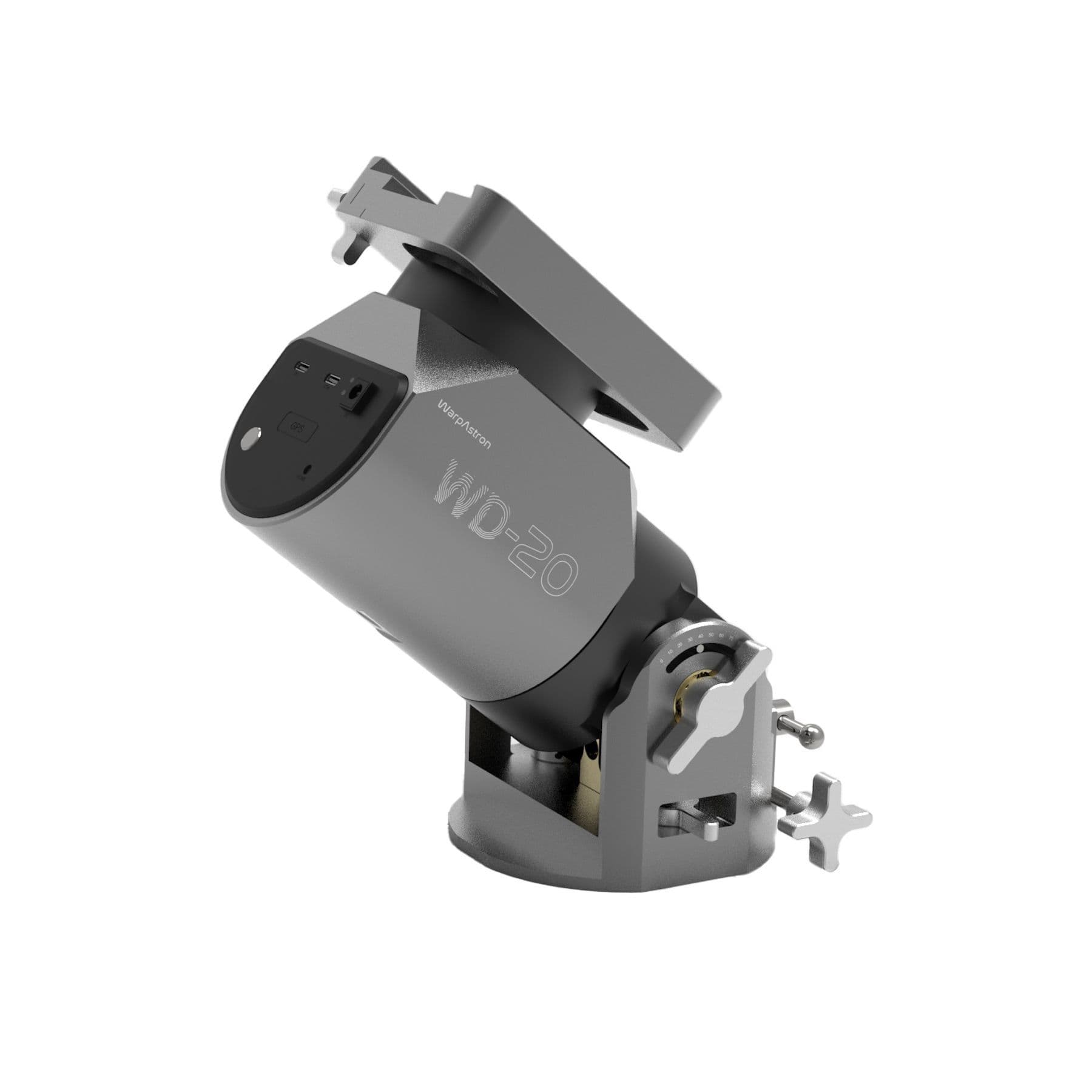

WarpAstron WARPDRIVE WD-20 Harmonic Drive Mount

The WarpAstron WD-20 is a compact heavy duty harmonic drive mount based on a unique Servo Direct Drive technology with a standard load capacity of up to 50NM without using a counterweight.

This mount is suitable for medium weight telescopes like the Altair 130mm 150mm Refractors or Celestron C11, which can be easily handled with accurate guiding performance.

The CNC machined mount head contains high power density servo motors, significantly boosting load capacity while keeping the mount head weight to only 5.4kg.

Both axes have a homing sensor, which makes astrophotography more convenient for remote control/observatories.

Features

Servo Direct Drive

Servo motor direct driving stain wave reducer, taking advantage of fast response and precise positioning, every mount provides constantly high precision guiding at the same level.

Dovetail clamp

Supports both 75mm Losmandy format and 45mm Vixen format dovetail bars.

50NM+ Load Capacity

Load up to 22kg without CW @25cm from RA axis determined by optical tube length and lever-arm performance.

High Precision Encoders

Ensure high precision positioning for the servo motors, far exceeding any stepper motor in performance.

GPS

GPS / Beidou positioning module inside, for automatic positioning which easily sync time/location to NINA etc. for outdoor operation.

CNC Machined head assembly

Main body machined on a 5 axis CNC milling machine to ensure high strength and reduce flex. Deep Sky Grey/Carbon Black anodized.

• Mount Type: Equatorial/Altazimuth
• Reduction Gear: RA: 20 Strain Wave Reducer, DEC: 17 Strain Wave Reducer
• Drive: Direct-drive motor with SWR
• Motor: BLDC Servo Motor
• Load Capacity*1: 50Nm (Standard) /60Nm (Max allowed) 22kg/44lb (without counterweights) 30kg/66lb (with counterweights)
• Material: AL6061, Stainless Steel, Brass, ABS
• Brake: RA Axis
• Saddle: Vixen & Losmandy
• Counterweight Shaft: M12 Shaft (1.75mm Pitch)
• Slew Rate: 5°/s (Standard 1/2Max), 10°/s (Max)
• Adjustment Range: ALT 0~90°, AZ +/-8°
• Operating Temp.: -25℃ ~ 50℃
• Communication Protocol: ASCOM / INDI / LX200 / INDIGO
• Home Control: 2-axis Home Sensors
• Time/Location: Built-in GPS
• Power: 12V 5A 5.5*2.1/2.5mm DC (Mount requires 12.0v input to operate. Please note, 12.0v cannot be exceeded for reliable operation).
• Wireless*2: WIFI 802.11g/Bluetooth

*1. Standard: Recommend for better performance; Max Allowed: Load can be moved by mount; User should also consider the tripod stability and center of gravity to use counterweights properly.

*2. Wireless functionality may vary by country and region.

Altair Astro and WarpAstron reserve the right to change the product specification and price without notice.
