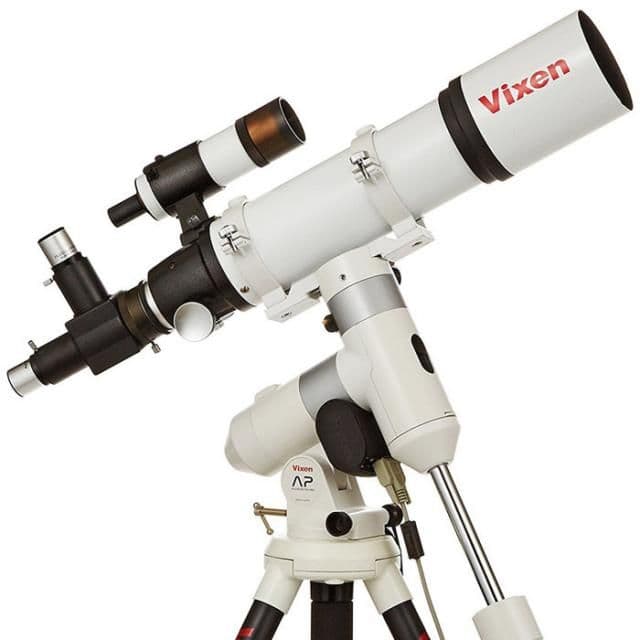

Vixen AP-ED80Sf-SM

Product code: X000183
in stock
[value]
£1,960.00 UK Price
£1,633.33 (ex. VAT) International Price

PREORDER : 2 weeks

PayPal Checkout
You will earn 1960 loyalty points with this purchase

Product information

  • Complete telescope set with tripod, mount and telescope
  • High-quality ED refractor with 80 mm lenses
  • Collapsible travel mount with RA motor and control
  • Lightweight and portable
  • Very high sharpness and contrast
  • Mount can be upgraded with DC motor
  • Total weight: 14.6 kg

AP-series telescope set with 80 mm refractor and high-performance SD glass for the lens. The set comes with an exclusive travel bag for transporting and storing the optical lens barrel.

STYLISH DESIGN
The AP mount features an ultra-smooth finish without any projecting parts.
Simply place your telescope on the mount and move it to the desired celestial object without having to loosen any clamps!

QUICK POLAR ALIGNMENT
The slip clutches allow you to adjust the telescope to your target object easily - no more searching for adjustment clamps in the dark! An optional polar meter is available, which enables you to locate the celestial pole when it is hidden by trees or buildings.

OPTIONAL POLAR FINDER SCOPE
The innovative polar finder scope provides a new way to polar align your telescope. Simply align the stars in the crosshair reticle with the same stars in the night sky. Polar alignment is achieved using 3 reference stars. The polar finder is illuminated to facilitate orientation and switches off automatically after 3 minutes to save battery power.

STAR BOOK ONE CONTROLLER
The STAR BOOK ONE is a multifunctional and intuitive controller that tracks in the RA and DC axis with a range of different speeds. The tracking options are designed for time lapse cameras at a wide range of speeds, including sidereal, lunar and solar rates. The controller also offers many useful functions such as backlash compensation, autoguider port, PEC and a built-in red LED light. The STAR BOOK ONE controller is designed for the AP-SM mount and is an integral part of the RA motor module.

APP-TL130 tripod

The compact APP-TL130 tripod is adjustable between 60 cm and 130 cm and combines the portability of a camera tripod with the strength of an astronomical telescope tripod. The tripod can be switched between rubber and metal spikes to prevent floor damage in indoor spaces.

FEATURES

  • Ideal for air travel
  • Collapsible travel mount with RA motor and control
  • Lightweight and portable
  • Upgradable DC motor
  • High-quality ED refractor with 80 mm lenses and 600 mm aperture
  • Resolution: 1.43
  • Limiting magnitude: 11.3
  • Light-gathering power: 134x
  • Very high sharpness and contrast
  • Total weight: 14.6 kg


DELIVERY CONTENT

  • ED80Sf ED refractor telescope
  • AP-SM mount with control/RA motor
  • APP TL 130 tripod
  • Folding mirror
  • 9x50 mm finder scope
  • Tube clamps
  • Dovetail adapter
  • 2 eyepieces: NPL20, NPL6
  • Aluminium case

Technical Data

FIELD OF APPLICATION
Field of application
  • Deep Sky Observation
  • Lunar observation
  • Planetary observation
  • Planetary photography
FOCUS GROUP
Focus Group
  • Beginners
  • Advanced Amateurs
PRODUCT FAMILY
Product Family Refractor telescope
OPTICAL SPECIFICATIONS
Optical design Apochomatic Refractor
Maximum recommended magnification 160
ED glass
Mirror/Lens diam. 80 mm
Focal length 600 mm
Aperture ratio 7.5
Angular resolution 1.43 arc seconds
Visual limiting magnitude (approx., mag) 11.3
Type of coating Multi coated
GENERAL TECHNICAL DATA
Case Aluminium Case - lockable - with foam inlet
Material tripod3 Aluminium
Transportability very good
Dust protection caps Dust protection caps for front lens and eyepiece holder
Mount Type German/Equatorial Mount
DIMENSIONS & WEIGHTS
Tripod height adjustment
Maximum load capacity 6 kg

Product Info

PREORDER 2 weeks
EAN 4955295399826
MPN X000183
Brand Vixen
Product Code X000183
Delivery Weight Package
18kg
