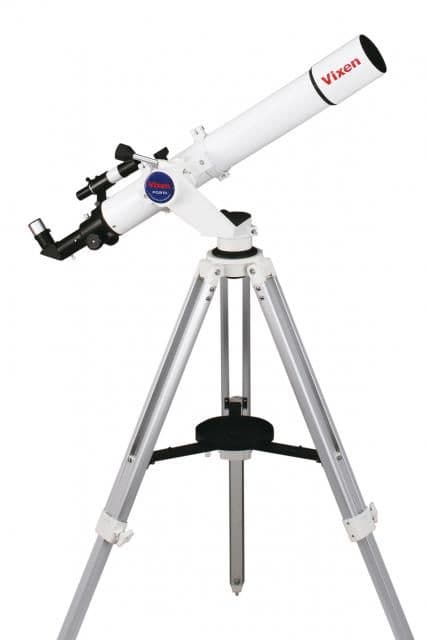

Vixen A80Mf Porta II Telescope
Product information
- Achromatic lens telescope with mount and tripod
- Applications: Astrophotography, earth observation, moon, planets, nebulae, galaxies
- Aperture ratio: f/11.4
- Mount: Porta II with tripod
- Eyepiece diameter: 31.7 mm (1.25”)
- Eyepieces: Plössl 20 mm, Plössl 6.3 mm (included accessory)
- Viewfinder telescope: 6x30 (included accessory)
- 31.7 mm star diagonal (included accessory)
- Total weight: 9 kg
The Vixen A80Mf Porta II telescope set includes everything that an entry-level astronomer needs. The A80Mf is an achromatic refractor with excellent colour correction properties, making it ideal for observing the moon and the planets.
It is also suitable for observing bright nebulae.
The PORTA II mount is not just popular among beginners – it also allows experienced astronomers to mount their devices quickly and easily. The PORTA II features a high-quality design and comes with a fine adjustment function for both axles.
The PORTA II does not require a clamp, as it sports a slip clutch that allows you to adjust the position to your desired object. It automatically holds its position, making it easy for users of all abilities to operate.
FEATURES
- Objective lenses: 80 mm 2-lens achromat, multi-coated
- Focal length: 910 mm (f11.4)
- Resolution and limiting magnitude: 1.45 arc seconds; 11.3
- Light-gathering power: 131x
- Total weight: 9 kg
- Adapter and connections: 31.7 mm receptacle with T2 connection for cameras
WHAT’S INCLUDED
- Porta II mount
- A80Mf telescope
- 2 eyepieces: Plössl 20 mm and Plössl 6.3 mm
- 6x30 viewfinder telescope
- 31.7 mm star diagonal
- Tripod
- Tripod storage shelf for accessories
- Shafts for fine adjustment
- Tube clamps and dovetail adapter
- Dew cap
- Mounting tool
Technical Data
FIELD OF APPLICATION | |
---|---|
Field of application |
|
FOCUS GROUP | |
Focus Group |
|
PRODUCT FAMILY | |
Product Family | Refractor telescope |
OPTICAL SPECIFICATIONS | |
Optical design | Achromatic Refractor |
Mirror/Lens diam. | 80 mm |
Focal length | 910 mm |
Aperture ratio | 11.4 |
Angular resolution | 1.45 arc seconds |
Visual limiting magnitude (approx., mag) | 11.3 |
Type of coating | Multi coated |
Finderscope | 6 x 30 mm |
GENERAL TECHNICAL DATA | |
Material tripod3 | Aluminium |
Transportability | good |
Eyepiece Barrel Diameter | 31.7 mm |
Colour |
|
Dust protection caps | dust caps for eyepiece and objective |
Mount Type | Azimutal |
Product Info
EAN | 4955295399529 |
MPN | X002519 |
Brand | Vixen |
Product Code | X002519 |
Delivery Weight Package
|
10kg |
