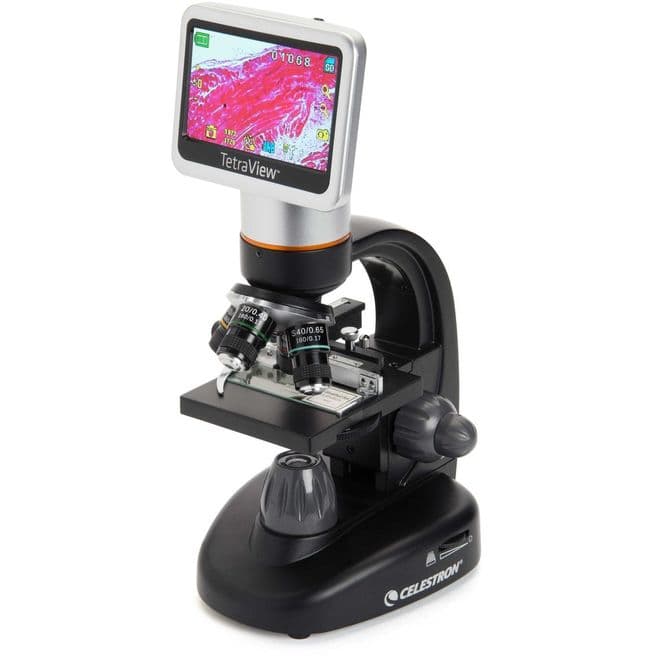

TetraView LCD Digital Microscope
Product information
- 40x to 400x magnification (up to 1600x with digital zoom)
- 4.3" LCD touchscreen
- 5MP CMOS built-in digital camera
- 4 fully achromatic objective lenses: 4x, 10x, 20x, 40x
- Adjustable LED bottom illumination
- 180° rotatable LCD screen
- Fully mechanical stage
- Coarse and fine focus knobs
- Filter wheel/diaphragm
- AV/TV output
- Battery power option (4AA batteries)
- 2GB SD card included (SD card slot supports up to 32GB)
- Universal AC adapter with multi-plugs for international usage
- Accessories included: 7 prepared slides, hard carrying case, dust cover, touch pen, USB cable, AV out cable
The professional-level Celestron TetraView LCD Digital Microscope is a touchscreen LCD microscope with advanced features at a reasonable price. TetraView features four fully achromatic lens objectives, a fully mechanical stage, a 4.3 TFT full color touch screen, 5MP CMOS sensor, and a 2GB SD card for storing your photos and videos. Taking high-resolution images and video of specimen slides has never been easier.
The LCD screen rotates 180° so you can easily share your viewing with others. For an even bigger audience, use the TV output to display on a television or projector. With magnification from 40 to 400x (1600x with digital zoom), TetraView is ideal for viewing a range of cellular specimens on slides.
Great for the discriminating professional or serious hobbyist, the TetraView microscope is an excellent tool for labs, schools, scientific research, and more.
| Type of Microscope | LCD Desktop |
| Head | 180° roatatable head w/4.3" TFT LCD Screen |
| Nosepiece | Quad with click stop |
| Objective(s) Type | (4) Achromatic objectives on turret |
| Objective(s) Standard | DIN 35 RMS |
| Objective(s) Magnification | 4x, 10x, 20x, 40x |
| Objective(s) Thread | WJ 4/5" x 1/36" |
| Focus Type(s) | Course Focus | Fine Focus |
| Focus Travel (per rotation) | 0.7mm to 35.3mm (.027" to 1.39") (est.) |
| Magnification Range | 40x, 100x, 200x, 400x | Up to 1600x with digtial zoom |
| Illumination Type | LEDs |
| Illumination Position(s) | TBD |
| Illumination Adjustability Mechanism | Adjustable wheels at base |
| Power Source | Universal 100 to 240V, 50/60 hz multi-country plug | (4) AA (optional) |
| Battery Options | Yes (4AA) |
| Stage | Fully mechanical with metal clips, 88mm x 88mm (3.5" x 3.5") | With Filter wheel | Red, blue, green | 1mm, 3mm, 6mm apertures |
| Condenser Type | Aplantic |
| Condenser N.A. | N.A. 65 |
| Stage Diaphragm | Multiple on wheel |
| Eyepiece Type | CMOS Sensor in lieu of eyepiece |
| Sensor Size | 5MP | 1/2.5" |
| Pixel Size | 2.2 m |
| Screen type | High definition touch, 480 x 272 pixels resolution, 109mm (4.3") with 4x digital zoom, rotates 180° |
| Screen Size | 4.3" |
| Memory Type | SD Card |
| Memory Size | 8G SD included | Supports up to 32G |
| Port(s) In | AC Plug (power) | SD Card slot (32Gmax) |
| Port(s) Out | Video/ TV out | USB 2.0 |
| AC Adapter | 5-6V DC, 200-1000mA tip positive electrical input. Jack should be 5.5mm (.21") OD, 2.1mm (.08") ID and 12.5mm (.49") long |
| Still image capture resolution | 1920x1080 | 2048x1152 | 2560x1440 | 3072x1728 | 3648x2048 | 3072x1728 |
| Video resolution | VGA (640 x 480) |
| Shutter trigger position | On LCD Screen |
| Software | Internal Firmware |
| Microscope Dimensions | 78mm x 140mm x 330mm (7" x 5.5" x 13") |
| Microscope Weight | 67 oz (1.9 kg) |
| Included Accessories | 8GB SD Card | USB 2.0 Cable (data transfer) | 7 Prepared Slides | 4 plug, multi-country AC adapter | Dust Cover | Carrying Case |
Product Info
| GTIN | 50234443470 |
| SKU | 50234443470 |
| MPN | 44347-CGL |
| Brand | Celestron |
| Product Code | 44347-CGL |
|
Delivery Weight Package
|
3kg |
