Starwave 9x50mm Finder Scope with Illuminated Reticule

Product code: SWASF5022-IR
in stock
[value]
£99.99 UK Price
£83.33 (ex. VAT) International Price
PayPal Checkout
You will earn 99 loyalty points with this purchase

Product information

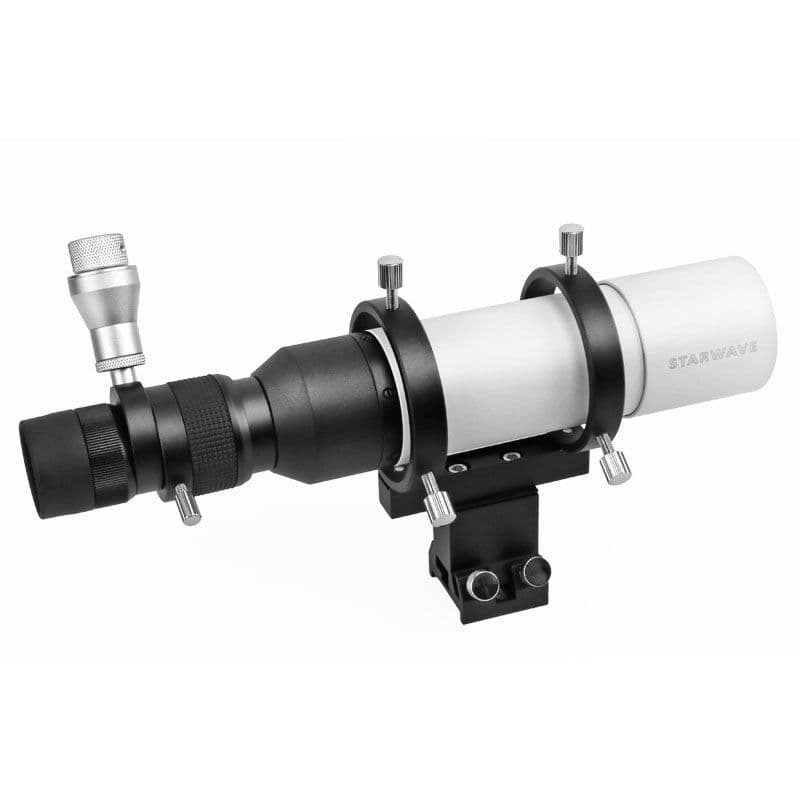

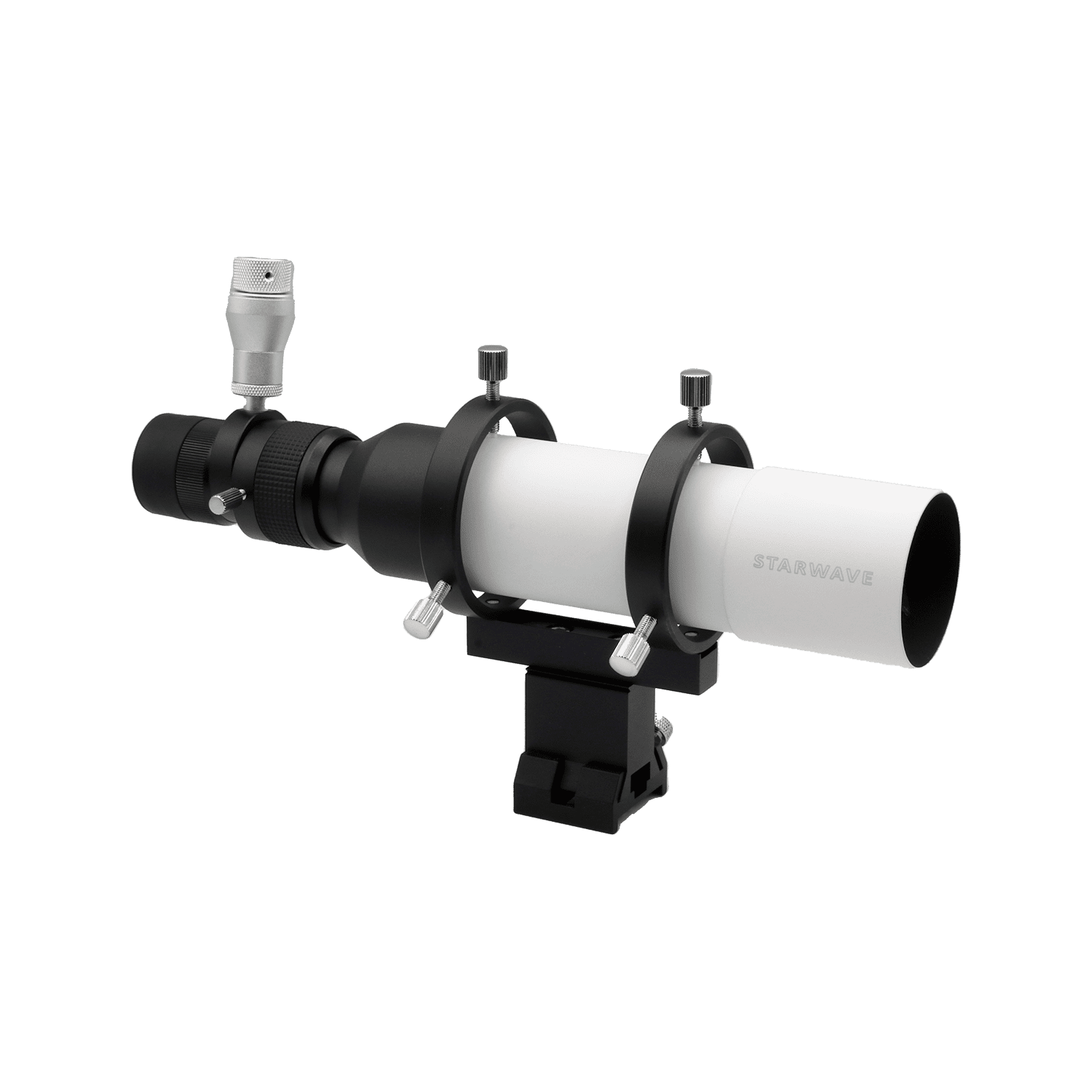

Starwave 50mm Guide Scope with a 1.25" rotating micro focuser, optical tube, rings, stalk, and universal finder bracket.

This is a quality all metal and glass finder scope to replace the cheaper plastic finders included with most telescopes these days. It has a fully multicoated cemented achromatic objective lens and quality eyepiece, delivering a much higher quality image, with better contrast for faint objects. The reticule is clearly visible, and much more precise than normal finder scopes. It also stays on target with metal alignment screws.

A 23mm 1.25" Illuminated Reticule Eyepiece is included, giving a magnification of 9x and an Apparent FOV of 55° (product code: 125-EP23-IR if ordered separately).

The focuser has a 1.25" ID push-fit adaptor with compression ring, allowing use of guide cameras, digital finders, or other 1.25"  eyepieces.

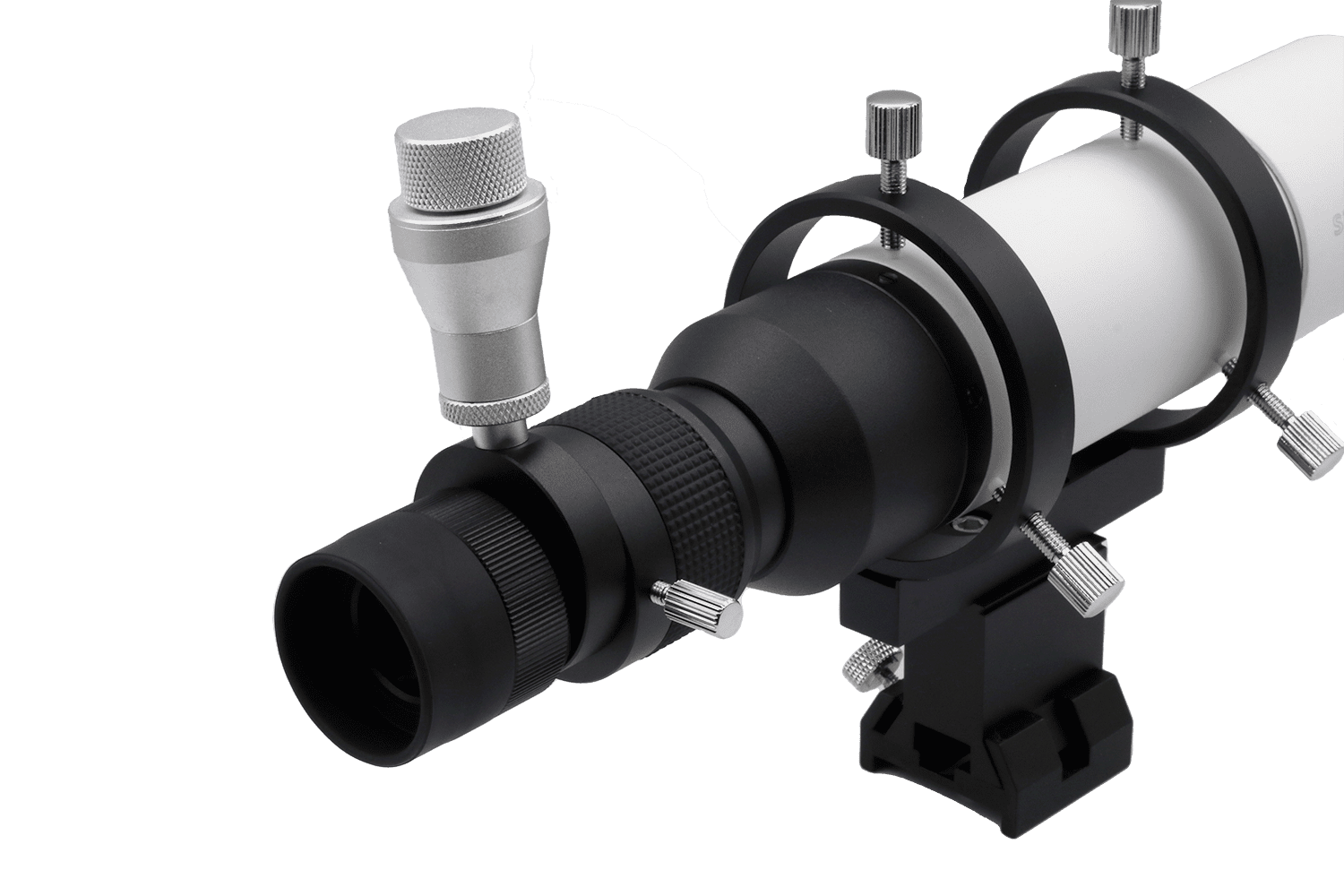

A removable red LED illuminator is included with variable brightness, and the laser etched reticule can be focused.

The metal finder stalk is compatible with most finder scope brackets on the market, but also includes a universal finder bracket (product code UNIFBR), with a cross-slotted hole pattern to fit most telescopes.

Tips:

To attach the finder scope to dovetail bars, remove the stalk by means of the two set screws and use the two M5 holes to connect it up. You'll require two M5 nuts if you are connecting it to a dovetail bar with central slot.

Focal length to enter into PHD2 is 206.6mm (F4.1) for guiding purposes.

Product Info

MPN SWASF5022-IR
SKU SWASF5022-IR
GTIN 0700900306690
EAN 0700900306690
Brand Starwave
Product Code SWASF5022-IR
Delivery Weight Package
1.5kg
