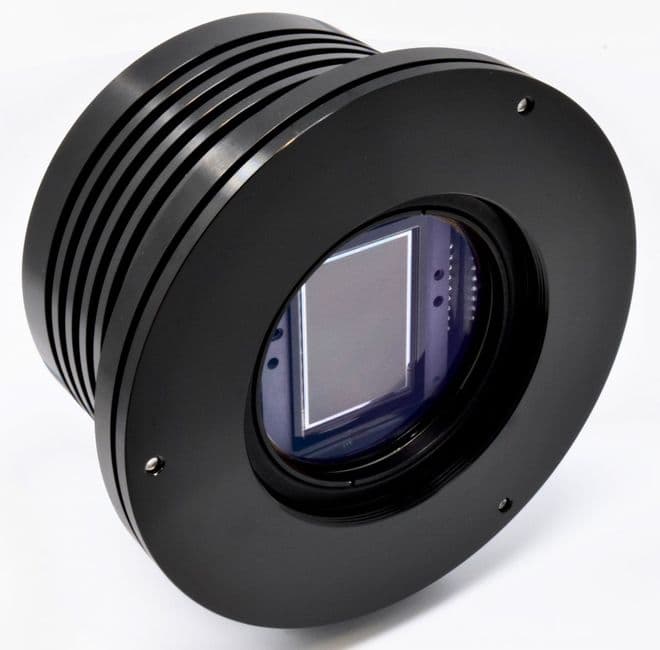

Starlight Xpress Trius PRO SX-36 Mono
Product code:
SX-36C-TRIUS
in stock
[value]
£4,498.00 UK Price
£3,748.33 (ex. VAT) International Price
You will earn 4498 loyalty points with this purchase
Product information
New, updated camera from Starlight Xpress
The TRIUS range of cameras was introduced in 2014. These were the first cameras on the market to incorporate a powered USB 2.0 hub in the rear of the camera to enable the user to connect their USB filter wheel and guide camera directly to the camera rather than multiple cables back to the computer - simplicity and convenience.
The new TRIUS PRO series follows on from that success. We have redesigned the electronics to give even lower read-noise figures and faster downloads. With the Sony CCD cameras, we are now getting read-noise figures that are better than CMOS cameras (when used at unity gain), along with 16bit data and significantly better dark-noise figure thanks to the impressive cooling. Dark frames really are a thing of the past, making calibration frames optional rather than compulsory, giving you more time to capture data and process your images.
The new Trius Pro versions of the H35 and H36 Starlight Xpress cameras incorporate a triple output powered USB hub for guider and filter wheel control.
Features include regulated set-point temperature control with superior fan assisted cooling and ultra-low read noise in a compact, light-weight body.
To reduce the negative effects of the greater Kodak dark signal a two stage Peltier cooler delivers an extra 10 degree reduction in the CCD temperature and a new high-speed USB2 interface circuit greatly reduce the download time.
The fast download minimises the visibility of bias frame artefacts, such as hot columns and the top to bottom gradient that is commonly seen on such chips.
Trius Pro H36 at Starlight Xpress
Features:
The TRIUS range of cameras was introduced in 2014. These were the first cameras on the market to incorporate a powered USB 2.0 hub in the rear of the camera to enable the user to connect their USB filter wheel and guide camera directly to the camera rather than multiple cables back to the computer - simplicity and convenience.
The new TRIUS PRO series follows on from that success. We have redesigned the electronics to give even lower read-noise figures and faster downloads. With the Sony CCD cameras, we are now getting read-noise figures that are better than CMOS cameras (when used at unity gain), along with 16bit data and significantly better dark-noise figure thanks to the impressive cooling. Dark frames really are a thing of the past, making calibration frames optional rather than compulsory, giving you more time to capture data and process your images.
The new Trius Pro versions of the H35 and H36 Starlight Xpress cameras incorporate a triple output powered USB hub for guider and filter wheel control.
Features include regulated set-point temperature control with superior fan assisted cooling and ultra-low read noise in a compact, light-weight body.
To reduce the negative effects of the greater Kodak dark signal a two stage Peltier cooler delivers an extra 10 degree reduction in the CCD temperature and a new high-speed USB2 interface circuit greatly reduce the download time.
The fast download minimises the visibility of bias frame artefacts, such as hot columns and the top to bottom gradient that is commonly seen on such chips.
Trius Pro H36 at Starlight Xpress
Features:
- Large, high resolution Truesense CCD chip, with 16,085,120 x 7.4uM square pixels in a 36.3 x 24.2mm array.
- Low dark signal - Dark frames not necessary for most of the brighter deep sky objects.
- Anti-blooming with minimal effect on linearity and no lost active area.
- Built-in super high speed USB 2.0 interface for approx. 10 second downloads.
- High sensitivity, approx. 52% QE at peak (green light), 31% at H alpha.
- Back focal distance 17mm +/-1mm.
- Built-in 3 port powered USB hub.
- Single USB cable control for all features - get rid of that dangerous cable tangle!
- Only ONE computer needed to control all of the devices and functions
- Very low power consumption. Less than 1.0 amps at 12v DC - 12VA at 110v or 240v AC
- Compact and lightweight - only 118mm in diameter x 102mm long - less than 850 grams load on the telescope.
- 72 x 1mm input thread, compatible with Takahashi FSQ106 etc.
- CCD type: Truesense KAI16070M interline CCD with low dark current and vertical anti-blooming.
- CCD Full resolution Pixel data: Pixel size: 7.4uM x 7.4uM, Image format: 4904 x 3280 pixels
- CCD Image area: 36.3mm (Horizontal) x 24.2mm (Vertical).
- CCD quality: Grade 2 available at this time.
- Spectral Response: QE max at 540nM (~52%), 30% at 375nM and 660nM.
- Readout Noise: Less than 10 electrons RMS - typically only 9 electrons.
- Full-well capacity: Greater than 30,000 e- (unbinned)
- Anti-blooming: Overload margin greater than 1000x.
- Dark current: Dark frame saturation time greater than 10 hours. Less than 0.05 electrons/second @ -20C chip temperature.
- Data format: 16 bits.
- System gain: 0.4 electrons per ADU
- Computer Interface: Built-in USB 2.0 compatible interface.
- Image download time: Typically 7 seconds at full resolution using USB 2.0.
- Power requirements: 115VAC / 240VAC @ 12VA, or 12VDC @ 750mA max.
- Cooling system: Regulated constant current cooling supply with three stage thermoelectric cooler to give a CCD temperature of approximately -40C below ambient.
- Size: 118 x 112mm black anodised aluminium barrel with 72 x 1mm thread at the CCD window end & input/output plugs at rear. CCD alignment screws are provided for setting the chip parallel to the focal plane.
- Weight: approx. 1100g.
Product Info
MPN | SX-36C-TRIUS |
SKU | SX-36C-TRIUS |
Brand | Starlight Xpress |
Product Code | SX-36C-TRIUS |
Delivery Weight Package
|
2kg |
