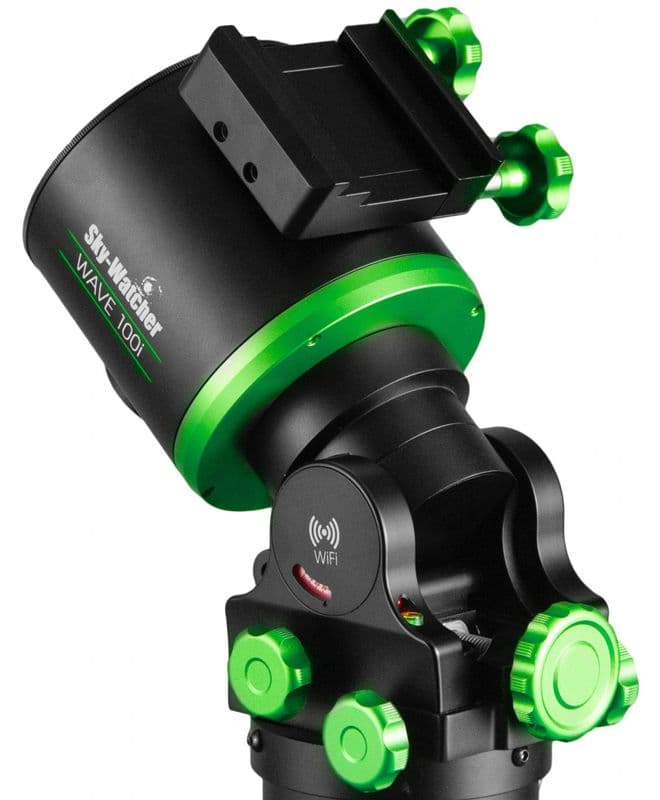

Sky-Watcher WAVE-100i Strainwave Mount Head

Product code: 20982
in stock
[value]
£1,549.00 UK Price
£1,290.83 (ex. VAT) International Price

PREORDER : Late August

PayPal Checkout
You will earn 1549 loyalty points with this purchase

Product information

HIGH TORQUE. HIGH PRECISION. HIGH PORTABILITY.

Taking advantage of the strain wave design with its high torque and compact construction, Sky-Watcher's WAVE mounts deliver high precision and power in an affordable and portable package. With exclusive features found on no other strain wave mounts, the new WAVE series is a serious update and upgrade to Sky-Watcher’s already immensely popular family of astronomy mount platforms.

The Sky-Watcher WAVE-100i is built based on a strain wave or harmonic gearing design. This drive gear design provides a number of benefits including highly precise tracking with minimal backlash for capturing long exposure images, and a compact design with a remarkable payload to weight ratio for the use of various equipment while still being convenient for transportation.

The WAVE-100i, boasting 10kg of payload capacity (15kg with optional counterweight kit), whilst being incredibly compact and lightweight. Sky-Watcher’s WAVE mounts also feature both EQ and AZ tracking modes with RA and DEC home positions, Dual-Fit Saddles, 0–90º latitude range, Wi-Fi & Bluetooth capability, RA power-off braking,  and a red backlit latitude display and bubble level to make your setup routine that much easier.

*Please note the Tripod, Extension Tube and Telescope OTA depicted in product photos are not included*

SPECIFICATION:

  • Working Mode: Equatorial or Alt-Azimuth
  • Supplied with Dual-Fit 45mm/75mm Saddle & Secondary 45mm/75mm Saddle.
  • Mount weight: 4.3kg
  • Payload Capacity (without Counterweight): 10kg
  • Payload Capacity (with Counterweight: 15kg
  • Counterweight Kit, Extension Tube and Tripod Available Separately
  • Transmission Mode: Belt-Driven Stepper Motor with Harmonic Reducer
  • RA Harmonic spec: 17-100. DEC Harmonic spec: 14-100
  • Highest Speed: 2400x (10º/second)
  • Transmission Reduction Ratio: 300:1 (both axes)
  • Latitude Adjustment Range: 0°-90°
  • Connection Sockets: USB-B, Autoguider, SynScan Handset & Power Input
  • R.A. Lock Function (for easy counterweight installation)
  • Controllable by Wi-Fi and Bluetooth or optional SynScan Handset (available separately)
  • Compatible with the Sky-Watcher SynScan PRO app for Windows, iOS and Android devices.
  • Also compatible with Stellarium, SkySafari & Cartes du Ciel and third-party drivers or software like ASCOM or INDI
  • Power Requirement: 12V 2A DC
  • RA Power-Off Braking Function
  • RA and DEC Home Position and Limits function
  • Convenient Red LED Illumination for Latitude Scales & Bubble Level
  • Precision CNC Machined Body
  • Foam-Lined Carrying Case

Product Info

PREORDER Late August
MPN 20982
Brand SkyWatcher
Product Code 20982
Delivery Weight Package
10kg
