Sky Rover 2" AZ Mount

Specifications

• Product Name: 2 inches mount
• Horizontal interface: 3/8" thread
• Pitch interface: M6 threads, one every 90 degrees
• Carrying capacity: 5-10kg
• Net Weight: 1.3kg

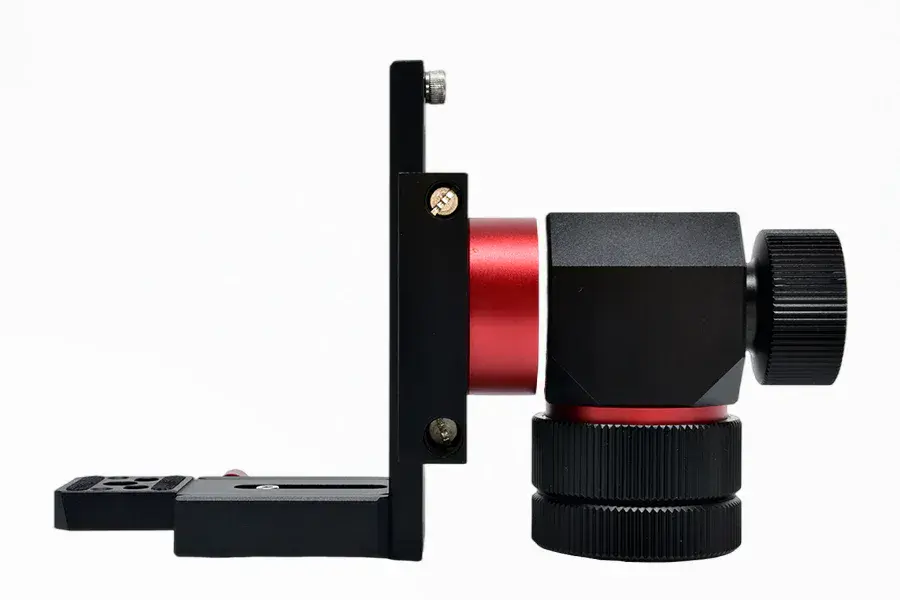

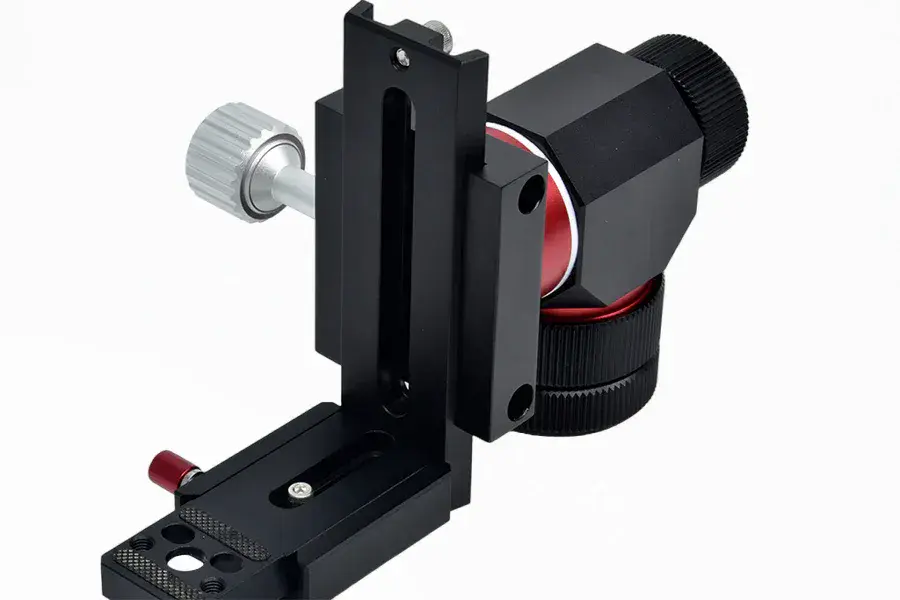

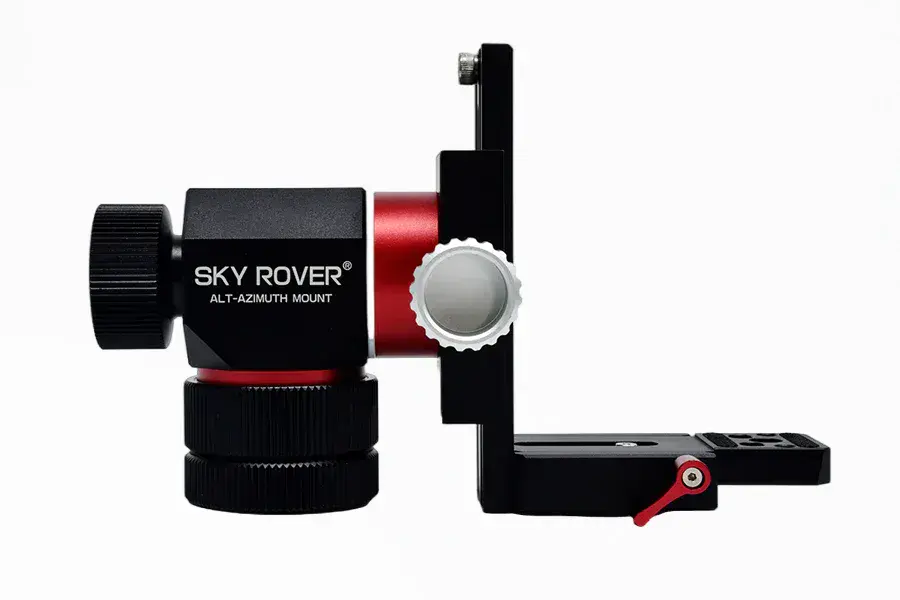

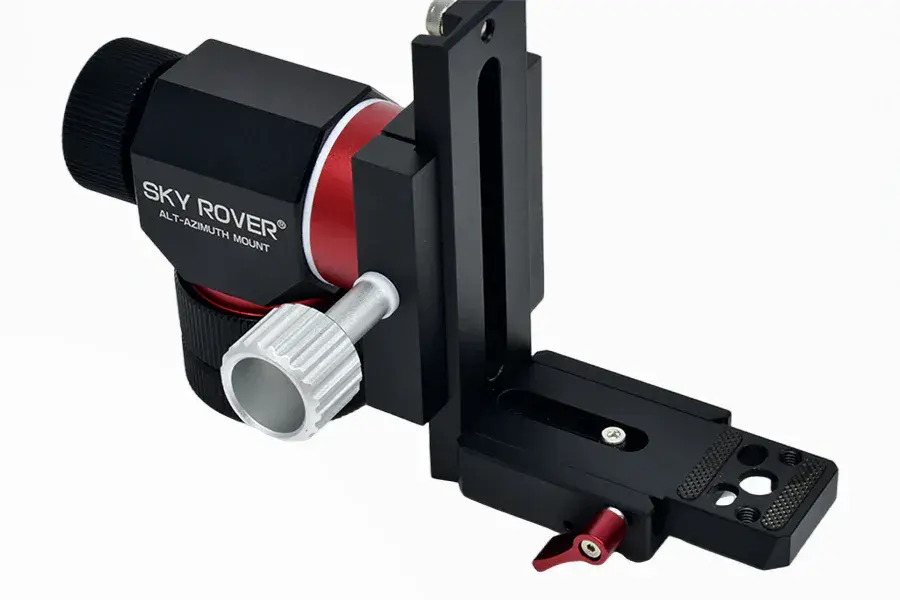

Structure

• (1) Pitch locking knob
• (2) Clamp
• (3) L plate
• (4) Horizontal locking knob
• (5) Clamp locking screw
• (6) L plate locking screw
• (7) M6 screw hole
• (8) 3/8 screw hole

Package Includes

Please confirm that the package contains the following items before using.

• (1) 2" mount
• (2) Clamp
• (3) L plate
• (4) M6 screw x2
• (5) 3/8 screw x1
• (6) 1/4 screw x1
• (7) Allen wrench
