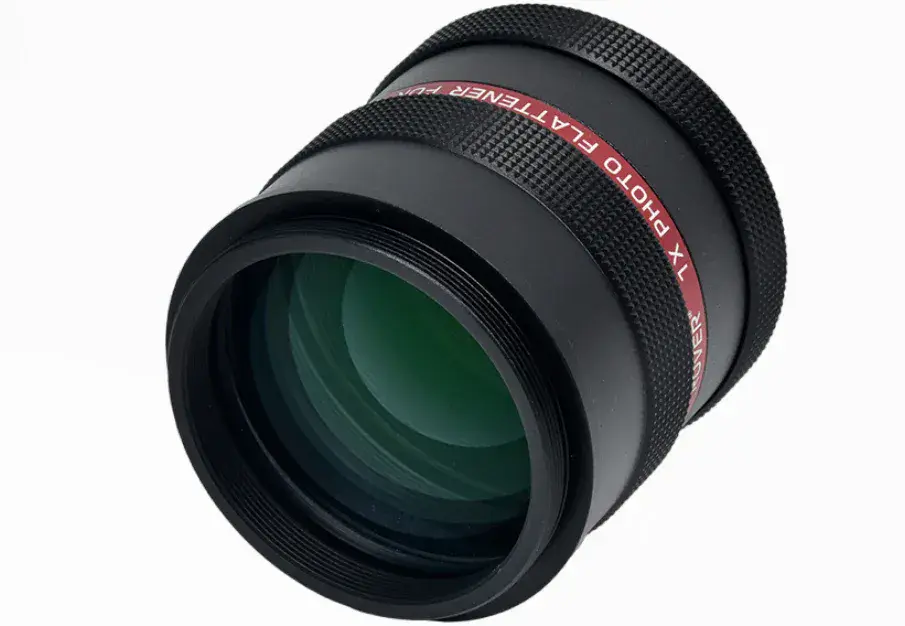

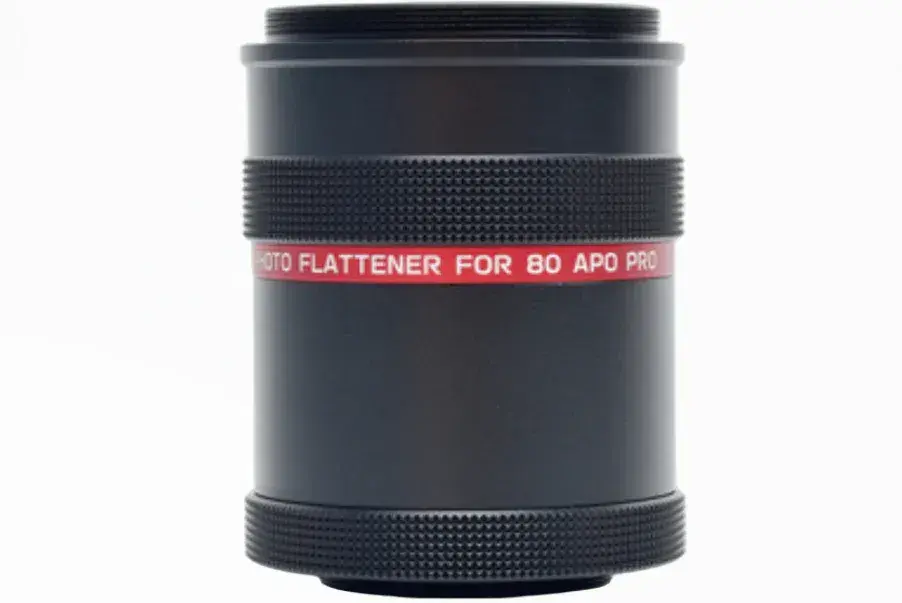

Sky Rover 1x Field Flattener for 80 GPS Telescope

Sky Rover 1x Field Flatteners

In 2021, Sky Rover launched a new 1xField flattener for 80/90/102/130/155 APO PRO, it adopts front thread M63X1 and rear thread M48X0.75, which can meet the illumination requirements of full-frame photography.

Considering the use of CCD and OAG, the shell can be removed to use, which can have longer work distance to satisfy the use of filter wheel /OGA/CCD.

Specifications

• Model: 1x for 90APO PRO
• Interface Spec: M63X1/M48X0.75
• Back Focus: 55mm
• Net weight: 400g

Connection Diagram

①Removing the adaptor at the end

②Installing filter

③Screwing adaptor into flattener.

A full-frame camera will be with light vignetting when install inner 2" filter

①1x flattener        ②Filter         ③Adaptor (M48x0.75 thread)        ④SLR mount(M48 T)         ⑤SLR       ⑥CCD mount        ⑦CCD

①1x flattener       ②Filter       ③Adaptor (M48x0.75 thread)         ④M48 adaptor   ⑤OAG       ⑥Filter wheel         ⑦CCD
