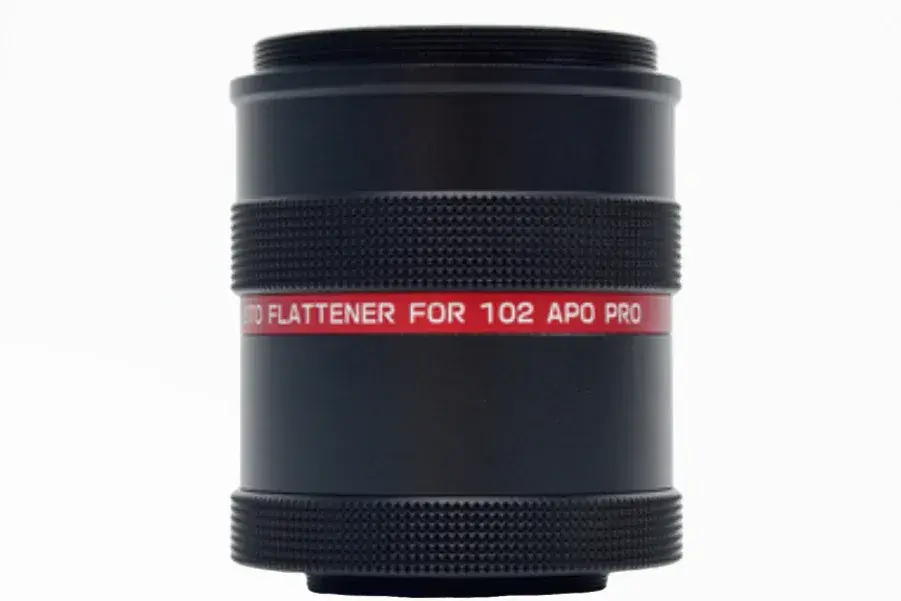

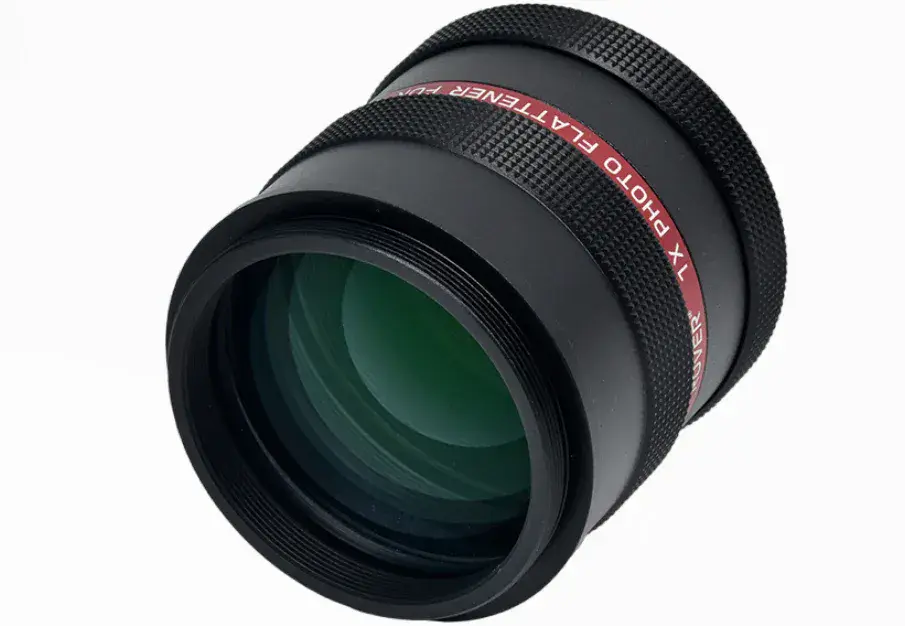

Sky Rover 1x Field Flattener for 102 GPS Telescope

Sky Rover 1x Field Flatteners

Specifications

• Model: 1x for 102APO PRO
• Interface Spec: M63X1/M48X0.75
• Back Focus: 55mm
• Net weight: 400g

Connection Diagram

①Removing the adaptor at the end

②Installing filter

③Screwing adaptor into flattener.

A full-frame camera will be with light vignetting when install inner 2" filter

①1x flattener        ②Filter         ③Adaptor (M48x0.75 thread)        ④SLR mount(M48 T)         ⑤SLR       ⑥CCD mount        ⑦CCD

①1x flattener       ②Filter       ③Adaptor (M48x0.75 thread)         ④M48 adaptor   ⑤OAG       ⑥Filter wheel         ⑦CCD
