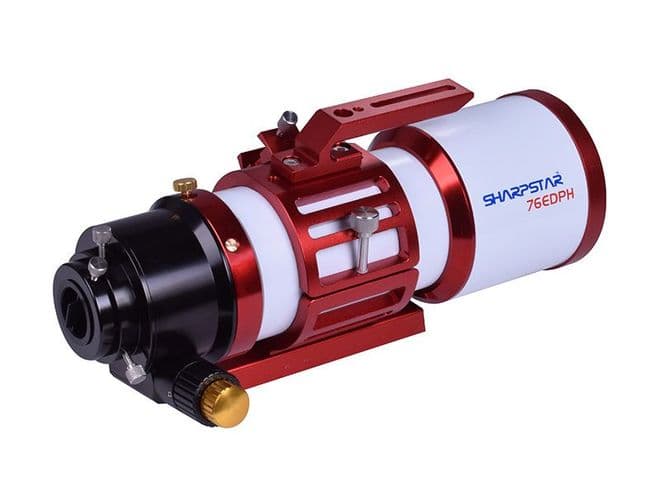

SharpStar 76EDPH Triplet ED APO Telescope
Product information
Sharpstar 76EDPH is the second arrival to the Sharpstar EDPH family. It has caught the spotlight for its aesthetic and streamline appeal since its entry to the market. Sharpstar 76EDPH features triplet air-spaced lens structure, including an ED(extra-low dispersion) glass ensuring an pleasing application in both visual observation and astrophotograph. This can effectively eliminate the chromatic aberration thus produce more detailed and higher-contrast images.
The aperture size is 76mm, and the focal length is 418mm, so the focal ratio is f/5.5. The whole length of the main tube is only 332.9mm when used with the dew shield contracted. Its compactness makes it a great companion for your outdoor sky observation as it can be easily packed in the travelling bags and brought onto the planes.
The rigorous and precise optical and mechanical design is the warranty for the performance of Sharpstar 76EDPH. A dedicated 2.5" f/4.5 full-frame reducer makes the ingenious device further ascend among the high-end, fast-focal-ratio astrographs
Specifications
76EDPH Parameters |
||
Aperture size |
76mm |
|
Focal length |
418mm |
|
Focal ratio |
f/5.5 |
|
Objective lens |
Triplet air-spaced APO (one is made of ultra-low dispersion ED glass) |
|
Limiting magnitude |
11.2 |
|
Total length of tube assy |
333mm (indented) |
|
Tube outer diameter |
90mm |
|
Net weight |
2.3kg (excluding tube rings and dovetail plate) |
|
Gross weight |
2.9kg (including tube rings and dovetail plate) |
|
Accessories |
A pair of tube rings, a dovetail plate, a handle and a finderscope base |
Product Info
MPN | SHARPSTAR-76EDPH |
Brand | Sharpstar |
Product Code | SHARPSTAR-76EDPH |
Delivery Weight Package
|
8kg |
