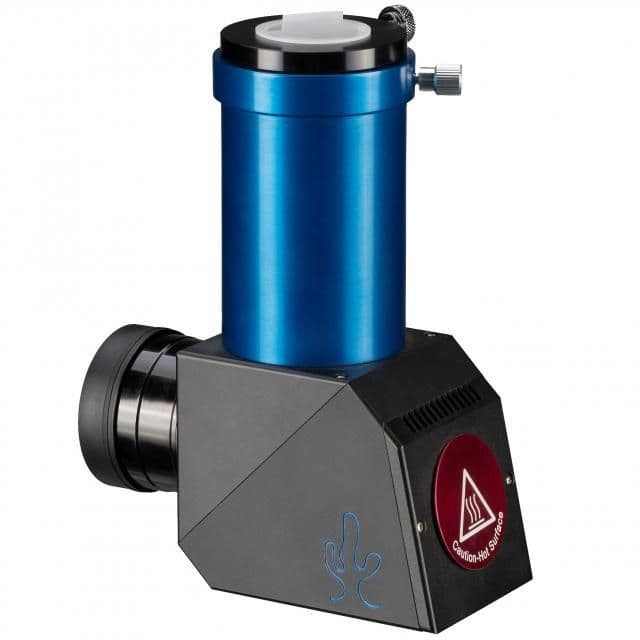

LUNT Ca-K filter-module for LS130MT

Product information "LUNT Ca-K filter-module for LS130MT"

This Ca-K module can be used at the LS130MT/B1200 and LS130MT/B1800 telescopes to observe the Sun also in the Calcium-K line. At the LS130MT/B3400 additionally the conversion kit for the LS130MT is required (item number 0551696).

You can use this Ca-K module with your LS130MT telescope to observe and photograph the Sun not only in H-alpha, but also in the blue calcium-K wavelength. Here again completely different phenomena become visible on the Sun than in H-alpha.

This Ca-K module was specially designed for the LS130MT H-Alpha telescope. If the H-alpha Etalon unit is removed from the LS130MT, the Ca-K module is simply inserted into the focuser instead of the blocking-filter.

The additional conversion kit 0551696 is necessary at the LS130MT/B3400, because at this telescope the blocking filter is fix installed inside the focuser.

For human eyes, the calcium-K light is just at the limit of the visible range. Many people have problems with visual observation. However, this does not apply to photography, where the Ca-K module shows everything the Sun has to offer in this wavelength.

SCOPE OF DELIVERY

• 2'' Ca-K Module for LS130MT telescope
• Instruction manual

LS130MT telescope and conversion kit not included! Can only be used together with an LS130MT solar telescope, at LS130MT/B3400 additional conversion kit 0551696 necessary.

This Ca-K module is also available for the LS130MT/B3400 as a set together with the required conversion kit (item number 0551695).

Technical Specifications

Manuals

Manual_LS130TCaKMD_de_LUNT-SOL_v062020b.pdf

Manual_LS130TCaKMD_en_LUNT-SOL_v062020b.pdf
