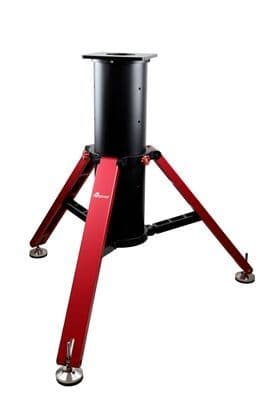

iOptron Tri-Pier 360
Product code:
8037A
in stock
[value]
£965.00 UK Price
£804.17 (ex. VAT) International Price
Product information
The iOptron heavy duty Tri-Pier 360A combines the strength and stableness of a pier with the levelling flexibility of a tripod. 5mm thick aluminum alloy pier and CNC machined legs with adjustable feet.
The Tri-Pier 360A can be used for the following mounts directly*:
The Tri-Pier 360A can be used for the following mounts directly*:
- CEM120
- CEM70
- CEM60
- iEQ45 Pro/iEQ45
- Paramount MyT
- AZ Mount Pro/MiniTower/MiniTower Pro (need Star Knobs with Center Post 8340-PIER)
- CEM40/GEM45 (need MiniPier 8032 or MiniPier top plate 8032PT)
- Takahashi (EM-200), SkyWatcher (HEQ5/EQ6/NEQ6/AZEQ6), Celestron (CGEM/CGEM-DX), Orion Atlas (EQ-G/AZEQ-G) ( need Tri-Pier adapter 8036-TK)
- Astro-Physics 400/600E/Mach1GOTO (need Tri-Pier adapter 8036-AP)
- ZEQ25/CEM25 (need Tri-Pier adapter 8036-25)
- CEM26/GEM28 (need special parts, contact iOptron Support)
* Due to larger top plate size, telescope may hit pier for a mount other than CEM120.
| Max Payload | 360 lbs (165 kg) |
| Self Weight | ~31 lbs (13.9 kg) |
| Material and Finish | Aluminum Alloy (CNC), anodized |
| Pier Diameter | 150 mm |
| Pier Wall Thickness | 5 mm |
| Pier Top Plate | 210mm X 210mm |
| Adjustable Height | 860-1020 mm) |
| Uneven Ground Range | 51 mm |
| Leg Maximum Spread | Ø1150 mm |
| Pier Dimension (folded) | Ø240 x 820 mm |
| Warranty | One year limited |
Manual
Tri-Pier 360 Instruction Manual
CAD Drawing
Pier top CAD drawing
Product Info
| MPN | 8037A |
| PREORDER | 2-3 weeks |
| SKU | 8037 |
| Brand | iOptron |
| Product Code | 8037A |
|
Delivery Weight Package
|
28kg |
