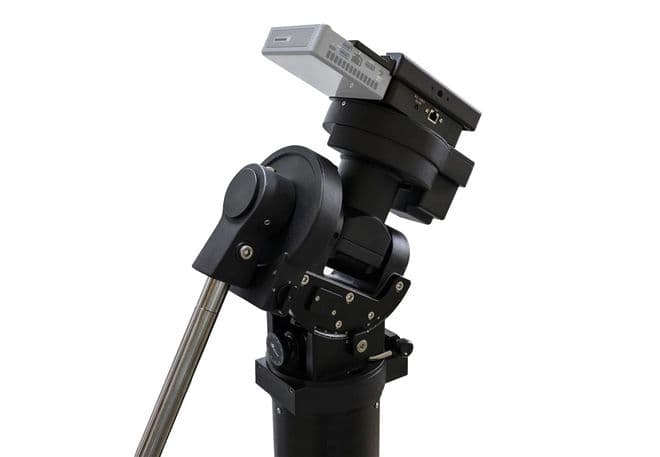

iOptron CEM70-EC NUC Centre Balanced Equatorial Mount With iPolar

Product code: C704AN0
in stock
[value]
£4,149.00 UK Price
£3,457.50 (ex. VAT) International Price

PREORDER : 2-3 weeks

PayPal Checkout
You will earn 4149 loyalty points with this purchase

Product information

Introducing iOptron CEM70EC-NUC equatorial mount!

Need more versatility of an equatorial mount without cable tangling? Tired of connection error with some third party control interface? Check out the iOptron NUC-ready mounts ! A CEM70EC-NUC is ready to mate with Intel® NUC minicomputer (thickness≤38mm) at the front of dovetail saddle seamlessly with the cable management system.

(Click here for details)

Following up on the success of the iOptron CEM60 center balance equatorial mount, we at iOptron are excited to introduce two new medium payload center balance mounts. The CEM70 and CEM70G are new standard bearers for equatorial mounts in the 70lb payload segment. Both models are packed with advanced features however the CEM70G is the first of its type with an onboard optical guiding system increasing tracking accuracy while streamlining the components resulting in a more portable imaging setup.

Retaining the inherent properties of the center balance design, these relatively compact medium payload mounts deliver what astronomers expect in an efficient accurate portable mount. With precise GOTO pointing and accurate tracking, the CEM70EC is a solid performer for observers and imagers alike.

Innovative operational features such as the internal iPolar electronic polar scope, easy lock drive gear engagement (levers large enough to use with gloves), an advanced cable management system for the mount, iPolar, guider, and camera, and cumulatively assure users the CEM70 and 70G designed with their needs in mind.

Features

  • A new design, center-balanced equatorial mount (CEM) for maximum payload with natural stability
  • Ideal for both visual observation and astrophotography
  • Payload of 70 lbs (31.8 kg) with the mount weight of 30 lbs (13.6 kg)
  • Easy to use and reliable gear clutches
  • Precision altitude and azimuth adjustment.
  • Precision stepper motor with 0.07 arcsec accuracy for precise GOTO and accurate tracking
  • iPolarTM electronic polar scope
  • Go2Nova® 8410 controller with Advanced GOTONOVA® GOTO Technology with built in heater
  • High precision tracking with low periodic error (PE<0.3 arcsec rms)
  • Realtime periodic error correction (RPEC)
  • 32-channel Global Positioning System (GPS)
  • USB connection
  • Integrated ST-4 autoguiding port
  • Advanced cable management system for mount and NUC
  • Spring loaded 8" Vixen/Losmandy dual saddle with NUC mounting adapter
  • NEW iOptron subsidized TheSky Imaging Edition

PACKAGE CONTENTS

  • Box 1 of 2: #C704AN0
    • 1x CEM70EC-NUC mount head in hard case with accessories
  • Box 2 of 2: #7226
    • 1x 9.5kg counterweight

Specifications

Mount Center-balanced Equatorial Mount (CEM)
Payload* 31.8kg (70 lbs), exclude counterweight
Mount weight 13.6kg (30 lbs)
Payload/Mount weight ratio 2.33
Material All metal
Latitude adjustment range 0°~ 65°
Azimuth adjustment range ± 4°
PE (by encoder)** < 0.3 arcsec rms
Worm period 348 sec
PEC Realtime PEC (RPEC)
Right Ascension worm wheel Φ151mm, 248 teeth
Declination worm wheel Φ151mm, 248 teeth
Worm Φ21.2mm
Right Ascension axle Φ55mm, steel
Declination axle Φ55mm, steel
Right Ascension bearings Φ80mm
Declination bearings Φ80mm
Counterweight shaft Φ28x 415 mm (SS, 1.9kg)
Counterweight 9.5 kg (20 lbs) x1
Mount base size Φ152mm
Motor drive Precision stepper motor w/128 micro-step
Resolution 0.07 arc seconds
Slew speed 3.75°/sec (900x) max.
Hand Controller Go2Nova® 8410, 8 line 21 character LCD
Power requirement*** DC 12V, 5A (5.5mm/2.5mm plug)
Power consumption 0.6A(Tracking),0.8A(GOTO)
Polar Scope Internal electronic polar scope, iPolar
Meridian treatment Stop (0-10° pass), auto flip
Zero position Automatic zero search
Park position Horizontal, vertical, current, alt/azi input
Level indicator YES
Dovetail saddle 8" Losmandy D & Vixen
GPS YES
Guiding port ST-4
Communication port USB2.0
Cable management DC12V (3A),DC (5A), GUIDE,USB
For NUC: DC 19V, LAN and USB
Operation temperature range -10°C ~ +40°C
Hard case YES
Pier/Tripod Optional LiteRoc tripod (8023ACC) or pier
Warranty Two year limited
* OTA size and length dependent.
** Measured with encoder on the bench, 348 seconds
*** Included AC adapter is for indoor use only

Manuals and Instructions:
Quick Start Guide
Instruction Manual
NUC Connection
iPolar Operation Manual

Firmware and Software:
Download the latest firmware
iPolar Software
FTDI VCP Driver, or go to FTDI Chip website to download the VCP driver

iOptron Telescope ASCOM Driver:
Install ASCOM Driver and Commander
