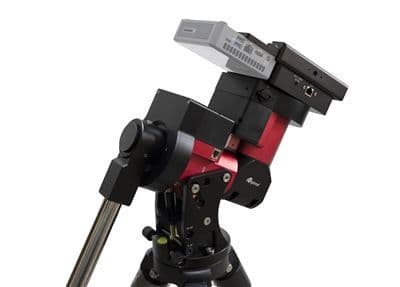

iOptron CEM40 NUC Centre Balanced GOTO Mount With iPolar & LiteRoc Tripod
iOptron CEM40 NUC Centre Balanced GOTO Mount With iPolar & LiteRoc Tripod

iOptron CEM40 NUC Centre Balanced GOTO Mount With iPolar & LiteRoc Tripod

Product code: C402AN3
in stock
Check stock level or request price match
[value]
£2,849.00 UK Price
£2,374.17 (ex. VAT) International Price
PayPal Checkout

Product information

Introducing iOptron CEM40-NUC equatorial mount!

Need more versatility of an equatorial mount without cable tangling? Tired of connection error with some third party control interface? Check out the iOptron NUC-ready mounts ! A CEM40-NUC is ready to mate with Intel® NUC minicomputer (thickness≤38mm) at the front of dovetail saddle seamlessly with the cable management system.

(Click here for details)

The iOptron® CEM40 mount is the next generation of center-balanced equatorial mounts. This mount is incredibly eye-pleasing, and its beauty is found in more than its appearance. The functionality of the mount is superb.

Innovative iOptron Technology
Make way for an innovative mount! This mount has an integrated electronic polar finder scope known as the iPolar. This tool ensures the accurate alignment of a telescope, even when the pole star is obscured. There are large levers on the quick-lock drive engagement system; these large levers make it easy to snap the gears into place.

This iOptron CEM40 mount has a dual saddle that accommodates Losmandy and Vixen-style dovetail plates. it also uses iOptron's ultra-quiet, low-power consumption stepper motor drive system, aiding the mount in providing precise tracking.

Computerized Mount Features
The iOptron CEM40 mount uses the Go2Nova® hand controller to navigate the night sky. This incredible technology helps observers find celestial objects with the aid of the mount's 212,000+ object database! For those looking for a telescope that has the capability of tracking and finding beautiful night sky objects, this mount is a must have tool.

With the included tripod, 11lbs. counterweight, and the mount's computerized technology, observers are just an OTA away from a spectacular viewing experience!

(This mount uses #8027 counterweight)
Features
  • Unique design, Center-Balanced equatorial mount (CEM) for maximum payload and minimum mount weight
  • Idea for both visual observation and astrophotography
  • Maximum payload of 40 lbs (18 kg)
  • All metal, CNC machined with red/black anodized
  • Easy to use quick-lock gear clutches
  • Integrated iPolarTM electronic polar finder
  • Low periodic error (< ± 7.5 arc seconds)
  • Permanent periodic error correction (PPEC)
  • Precision stepper motor for precise GOTO and accurate tracking
  • Go2Nova® hand controller with Advanced GOTONOVA® GOTO Technology with built-in heater
  • Integrated ST-4 autoguiding port
  • 32-channel Global Positioning System (GPS)
  • USB communication port
  • Advanced cable management system for mount and NUC
  • 6" Losmandy D & Vixen dual dovetail saddle with NUC mounting adapter
  • Standard LiteRoc 1.75" inch heavy-duty stainless steel tripod (7kg)
  • Hard case
  • Optional WiFi for mount control via SmartPhone/Tablet/Computer
  • NEW iOptron subsidized TheSky Imaging Edition

Specifications

Mount Center-Balanced Equatorial Mount
Max payload* 40 lb (18 kg), exclude counterweight
Mount weight 18 lbs (8.2 kg)
Payload/Mount weight 2.2
Structure Material All metal, CNC machined
Exterior Finish Anodized red/black
Latitude adjustment range 0º ~ 60º(special CW shaft mounting if <10° )
Azimuth adjustment range ± 6º
Tracking accuracy (PE)** <±7.5 arcsec
PEC PPEC
Period 400 sec
Worm diameter Φ17mm, Brass
Right Ascension worm wheel Φ110mm, 216 teeth, zero backlash
Declination worm wheel Φ110mm, 216 teeth, zero backlash
Right Ascension axis shaft Φ45mm steel
Declination axis shaft Φ45mm steel
Right Ascension bearings Φ68mm
Declination bearings Φ68mm
Counterweight shaft Φ28 x 280 mm SS 1.2KG
Counterweight 5KG(11lb)X1
Motor Precision stepper motor, 1.8º/128X micro-step
Motor resolution 0.08 arcsec (200 PPS)
Transmission Synchronous belt
Hand Controller Go2Nova® HC, 8 line 21 character LCD
Star Database 212,000+, star identification
Power DC 12V, 5A (5.5mm/2.5mm plug)
AC adapter 100V ~ 240V (included, for indoor use only)
Power consumption 0.6A(Tracking), 0.9A(GOTO)
Power-down memory Yes
Polar scope Internal iPolar TM electronic polar scope
Meridian treatment Stop (0-10° pass), flip
Zero position Automatic zero search
Dovetail saddle 6" Losmandy-D &Vixen
Max slew speed 4.5°/sec (1080x)
Guiding port ST-4
Communication port USB
GPS Yes
WiFi External (optional)
Guiding scope/camera Optional external iGuider 1
Cable Management DC12V (3A),DC (5A), GUIDE,USB
For NUC: DC 19V, LAN and USB
Tripod LiteRoc 1.75" Stainless Steel, optional tri-pier
Hard case Included
Operation temperature -10ºC ~ 40ºC
Warranty Two year limited

* OTA size and length dependent
** Measured with encoder on bench, 400 seconds

Manual:
Quick Start Guide
Instruction Manual
NUC Connection
iPolar Operation Manual

Firmware and Software:
CEM40 Firmware
iPolar Software
FTDI VCP Driver, or go to FTDI Chip website to download the VCP driver

iOptron Telescope ASCOM Driver:
Install ASCOM Driver and Commander

Product Info

MPN C402AN3
Brand iOptron
Product Code C402AN3
Delivery Weight Package
 20kg
