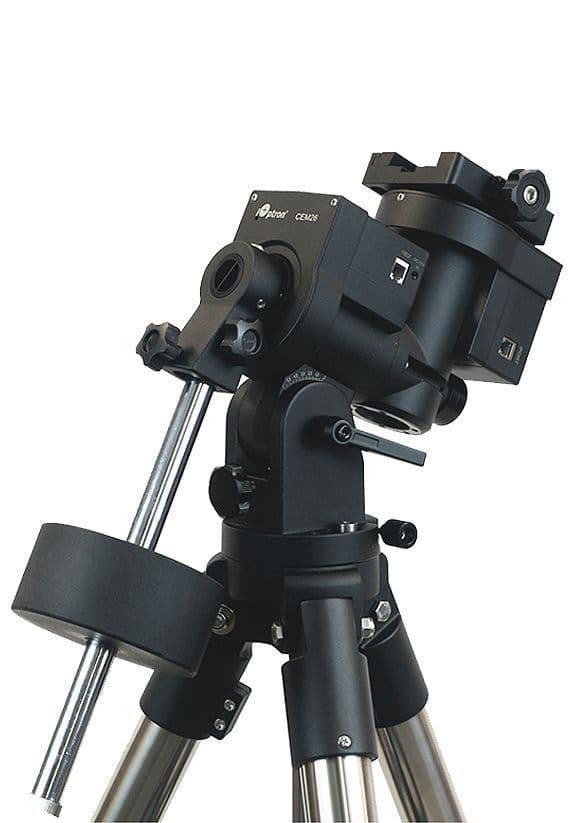

iOptron CEM26-EC Center Balanced Equatorial GoTo Mount with Encoders

Product code: C264A1
in stock
[value]
£2,649.00 UK Price
£2,207.50 (ex. VAT) International Price

PREORDER : 2-3 weeks

PayPal Checkout
You will earn 2649 loyalty points with this purchase

Product information

Introducing iOptron’s new compact next-generation center-balance equatorial mounts the CEM26EC!

Like their predecessors, the CEM26 is designed with portability in mind, weighing in at only 10 lbs it can support up to a 26lb payload an incredible 2.6 mount weight to payload ratio. The key to enable such ratios is the CEM design focuses the mount and payload weight directly on the center of the tripod rendering “natural stability”.

Building on the legacy of earlier CEM models we have added features for convenience and functionality. A positive lock gear engagement system (easy to use even when wearing gloves). A high resolution optical encoder with real-time PEC delivers accurate tracking with PE <0.3 arcsec RMS. Built-in Wi-Fi enabling unparallel connectivity. The CEM26 sets the new standard for compact equatorial mounts.

The center-balanced design mount puts the weight of the payload at the center of gravity allowing for greater natural stability. Other features include an adjustable counterweight bar to prevent obstruction with the tripod. And polar aligning is quick and accessible all the time since the polar scope is not blocked by the declination shaft.

The CEM26 is equipped with the latest advanced GOTONOVA® GOTO technology, making it one of the most powerful and accurate GOTO mounts available. Its database includes over 212,000+ objects. The Go2Nova® Hand Controller is intuitive to use and its large 4-line LCD screen simplifies the process of setting telescopes and locating objects.

The CEM26EC mount has an integrated electronic polar finder scope known as the iPolar. This tool ensures the accurate alignment of a telescope, even when the pole star is obscured. It comes with a 1.5" heavy duty stainless steel tripod and an aluminum carrying case.

Shipping Box #1: C264A-CEM26EC Head w/ iPolar/Case/Tray (C264A)
Shipping Box #2: 8281-CEM26/GEM28 1.5" Tripod w/o Tray (C26/G28 1.5T)
  • Features
    • Unique design, center-balanced equatorial mount (CEM) for maximum payload and minimum mount weight
    • Ideal for both visual observation and astrophotography
    • PE < 0.3 arcsec rms
    • Payload of 12 kg (26 lbs) with the mount-only weight of 4.5 kg (10 lbs)
    • CNC machined and cast metal body
    • Spring loaded gear system
    • Large easy to use quick-lock gear clutches
    • 0º latitude operation with optional adapter
    • Stepper motor with low power consumption
    • iOptron AccuAlignTM calibrated polar scope
    • Polar alignment routine for those who can’t see the Pole Star
    • Go2Nova® 8409 controller with Advanced GOTONOVA® GOTO Technology
    • Integrated ST-4 autoguiding port
    • Built-in Wi-Fi
    • USB port for firmware upgrade and computer control
    • 1.5" heavy-duty stainless steel tripod (5kg)
    • Die-cast metal tripod spreader with accessory tray
    • Hard carrying case
    • Optional 32-channel Global Positioning System (GPS)
    • Optional iGuiderTM autoguiding system #3360
    Mount Center-Balanced Equatorial Mount
    Payload * 26 lbs (12kg), exclude counterweight
    Mount weight 10 lbs (4.5kg)
    Payload/Mount weight 2.60
    Structure Material All metal, Casting + CNC machined
    Exterior Finish Powder coating
    Periodic error (PE) ** <0.3 arcsec rms
    PEC Real-time PEC
    Worm period 600 sec
    Right Ascension worm wheel Φ88mm, 144 teeth aluminum
    Declination worm wheel Φ88mm, 144 teeth aluminum
    Right Ascension axis shaft Φ35mm steel
    Declination axis shaft Φ35mm steel
    Right Ascension bearing Φ55mm ball bearing
    Declination bearing Φ55mm ball bearing
    Worm gears Φ15.2mm, Brass
    Motor drive 1.8º stepper motor, 128X microdivision
    Resolution 0.17 arc seconds
    Transmission Synchronous belt
    Latitude adjustment range 0º ~ 60º (special CW shaft mounting if <10° )
    Azimuth adjustment range ± 6º
    Polar Scope iPolar TM electrics polar scope
    Level indicator Level bubble
    Hand Controller Go2Nova® 8409 with ~212,000 objects database
    Tracking Automatic
    Slew speed 1×,2×,8×,16×,64×,128×,256×,512×,MAX(6º/sec)
    Power consumption 0.5A(Tracking), 0.8A(GOTO)
    Power requiremention 12V DC, 5A
    AC adapter 100V ~ 240V (included)
    Power-down memory Yes
    Wi-Fi Built-in
    Communication port Yes (Wi-Fi and USB)
    Autoguide port Yes (ST-4 compatible)
    Firmware upgrade Yes
    PC computer control Yes (ASCOM)
    Counterweight shaft Φ20X200mm with a 120mm extension (M16, SS)
    Counterweight 10 lbs (4.5kg)
    Tripod 1.5" heavy duty stainless steel tripod (5kg)
    Dovetail saddle 3.8" Vixen-style, center adjustable
    Hard case Included
    GPS Optional external 32-channel GPS
    Autoguiding Optional external iGuider 1
    Operation temperature -10ºC ~ 40ºC
    Warranty Two year limited


    * OTA size and length dependent, smaller than 6" in diameter recommended
    ** Measured with encoder on bench, 10 minutes

Product Info

MPN C264A1
PREORDER 2-3 weeks
Brand iOptron
Product Code C264A1
Delivery Weight Package
15kg
