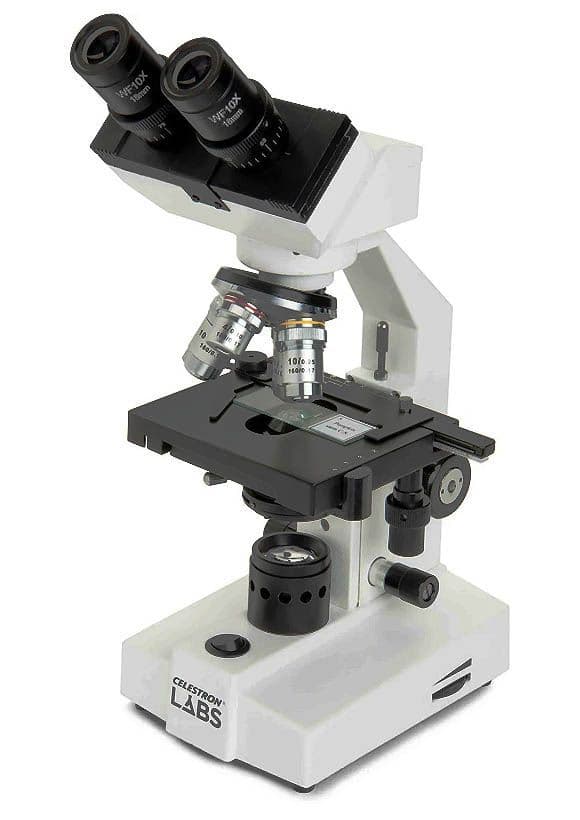

Celestron Labs CM2000CF Compound Microscope
Product information
The Celestron Labs CM2000CF Compound Microscope offers all the advanced features youre looking for at an economical price. With 10x and 20x eyepieces and 4 included objective lenses (4x, 10x, 40x and 100x), youll achieve magnification ranging from 40x to 2000x.
Strong and stable thanks to its all-metal construction, this microscope features a fully adjustable, mechanical stage so you can easily center your specimen slides. Improve the quality of your magnified images with the included 3 colored filters. The 10 included prepared slides guarantee exciting discoveries right out of the box. The NA 1.25 Abbe condenser with iris diaphragm concentrates and focuses the lower illumination for enhanced viewing making the CM2000CF an excellent tool for labs, schools, scientific research and more.
| Type of Microscope | Compound |
| Head | Monocular with 360° rotatable 45° incline |
| Eyepiece(s) Magnification | (1) 10x and (1) 20x (10x with pointer) |
| Eyepiece(s) Diameter | 23.2 mm (.91") |
| Nosepiece | quadruple, rotational |
| Objective(s) Type | Refractive |
| Objective(s) Standard | DIN |
| Objective(s) Magnification | (4) 4x, 10x, 40x, 100x immersion, all achromatic |
| Objective(s) Thread | 4/5" x 1/36" |
| Focus Type(s) | Rack & pinion, coarse and fine focus (individual dials) |
| Focus Travel (per rotation) | 0.1 mm (.004") |
| Magnification Range | 40x to 2000x (40x, 80x, 100x, 200x, 400x, 800x, 1000x and 2000x) |
| Illumination Type | Halogen |
| Illumination Position(s) | Lower |
| Illumination Adjustability Mechanism | Dial |
| Power Source | AC Adapter- 100-240V |
| Battery Option | 6V/0.5W |
| Stage | Mechanical stage, 110 mm x 125 mm (4.3" x 4.9") |
| Condenser Type | Abbe with Iris adjustment |
| Condenser N.A. | 1.25 |
| Stage Diaphragm | N/A |
| Included Accessories | 10 prepared slides, 3 color filters (blue, white opaque, green), immersion oil |
Product Info
| SKU | 50234442305 |
| MPN | 44130-CGL |
| GTIN | 50234442305 |
| Brand | Celestron |
| Product Code | 44130-CGL |
|
Delivery Weight Package
|
3kg |
