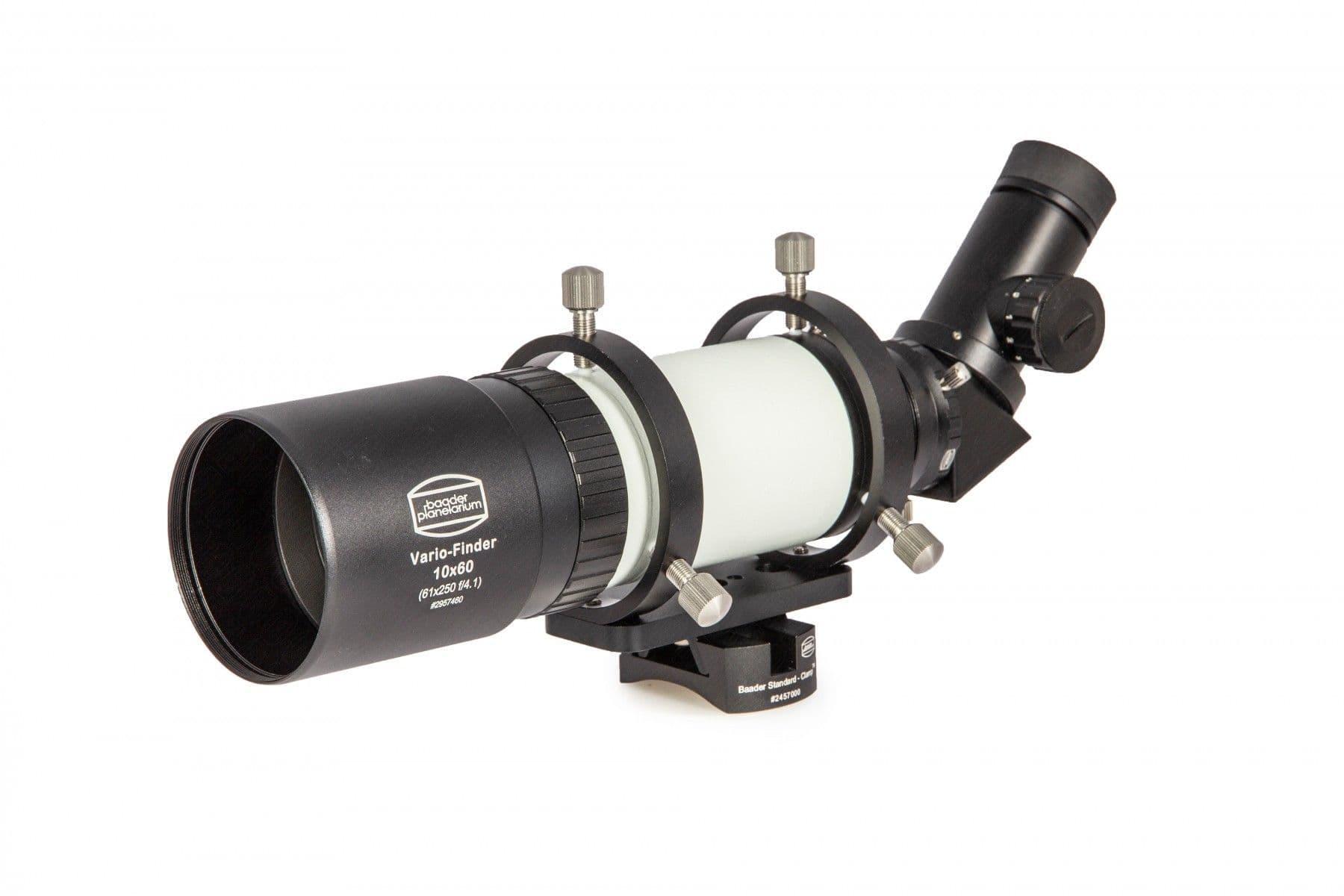

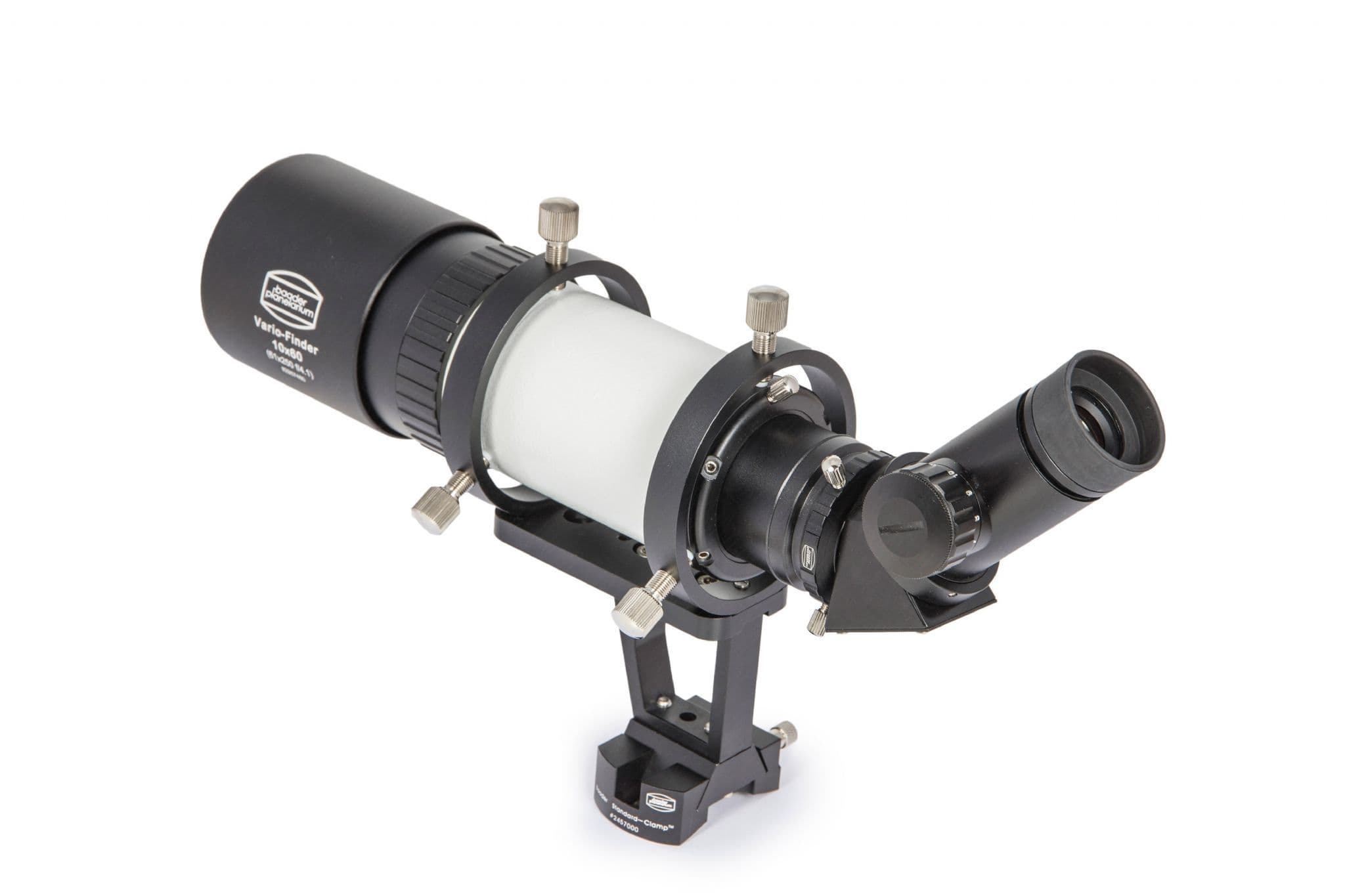

Baader Multi-Purpose Vario-Finder 10x60 with MQR IV finder holder

• Multi-Purpose Variofinder: 45 ° viewing with upright frame, 25mm eyepiece with illuminated measuring recticle and MQR IV finder holder, 4,5° field of view
• Opening 61mm with Baader Phantom Group Coating, focal length 250mm, aperture ratio 1: 4.1

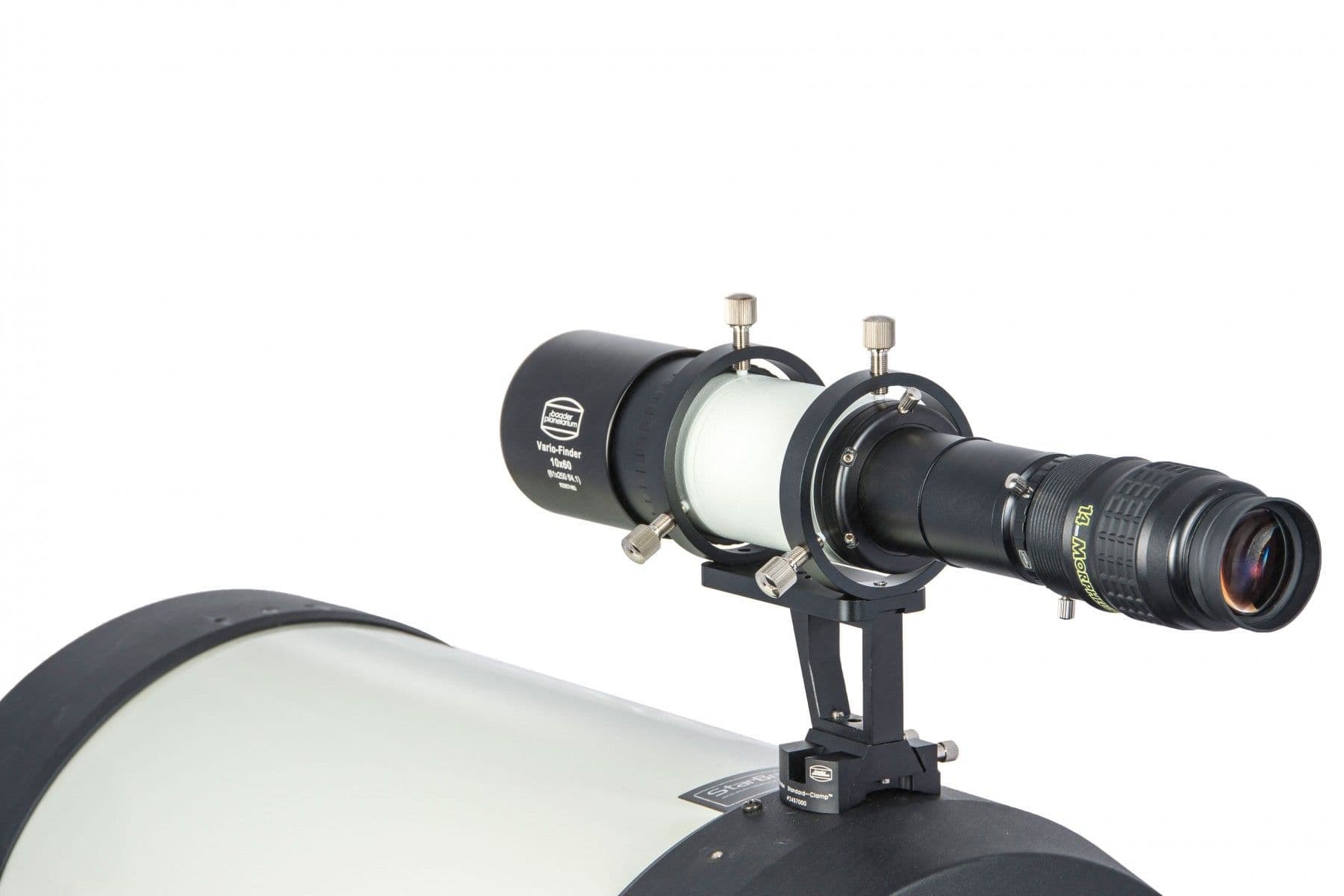

• Optionally usable as Guide Scope and as 60mm Spotting Scope
• Including EQ dovetail / photo tripod adapter with polar scope reticle and illumination device

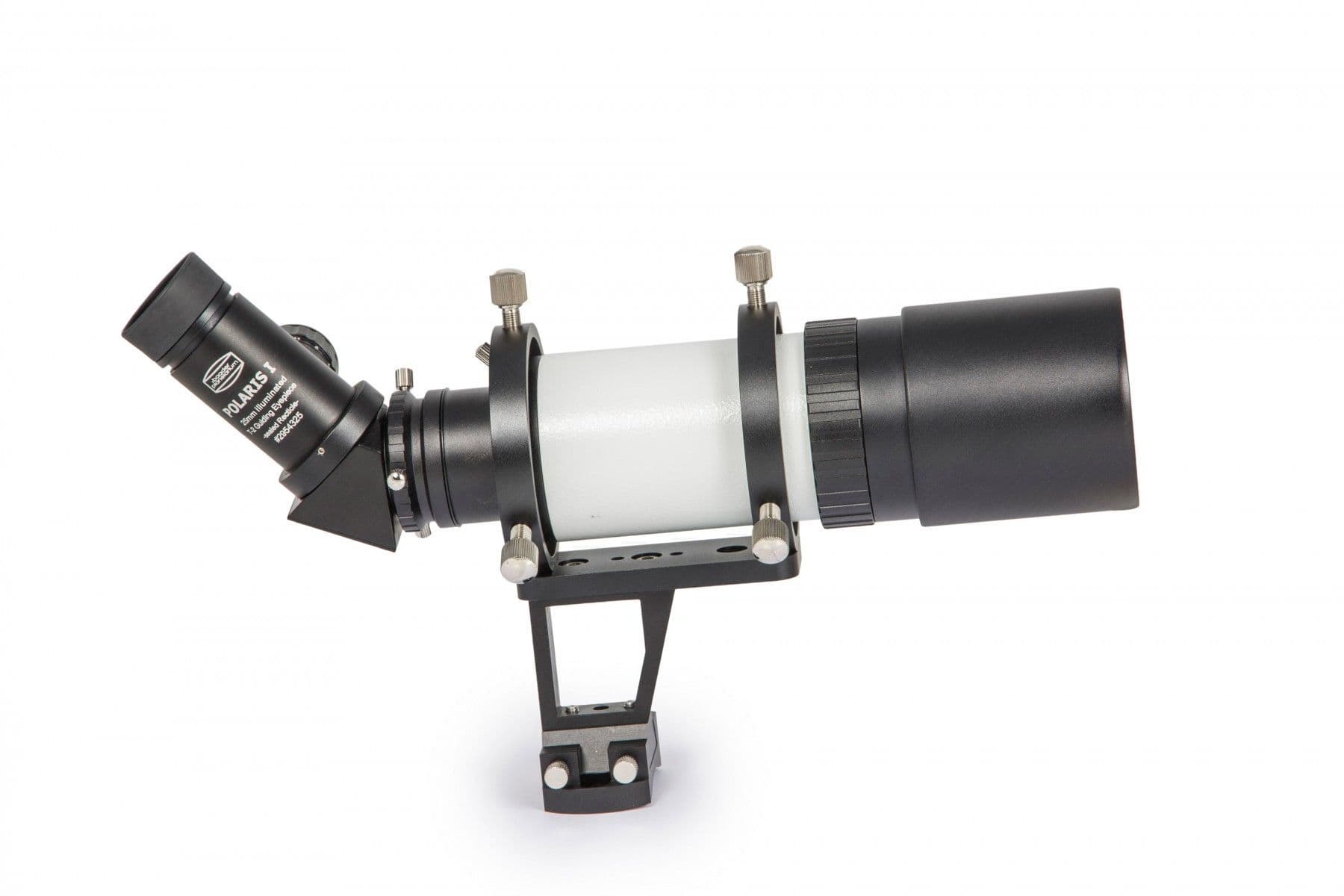

• The Baader MQR can be used either in full height or in a low profile configuration
• Tthe V-dovetail and ring-base-plate of the MQR-finder-holder can be directly mounted onto each other without the intermediate spacer, with the help of two (optional) M5x12 mm screws. This allows to use the finder in a low profile configuration as it is desirable for Schmidt-Cassergrain OTAs
• The spacer itself is equipped with a mini-weaver-style dovetail so that it can carry a SkySurfer III or SkySurfer V red dot finder as well

Baader Multi-Purpose Vario-Finder 10x60

The optical data of the lens:

• 61 mm aperture with BAADER Phantom Coating^® Group
• Focal length 250 mm
• Focal ratio 1:4.1

The technical data of the Vario Finder:

Since 2015: easily accessible focus knob (1)

Possible applications of the BAADER Multi Purpose Vario Finder:

Scope of supply:

• BAADER MultiPurpose Vario Finder 10 x 60mm
• 45° AMICI Prism for erect image
• 25mm eyepiece with illuminated measuring recticle
• EQ dovetail with ¼" photo thread
