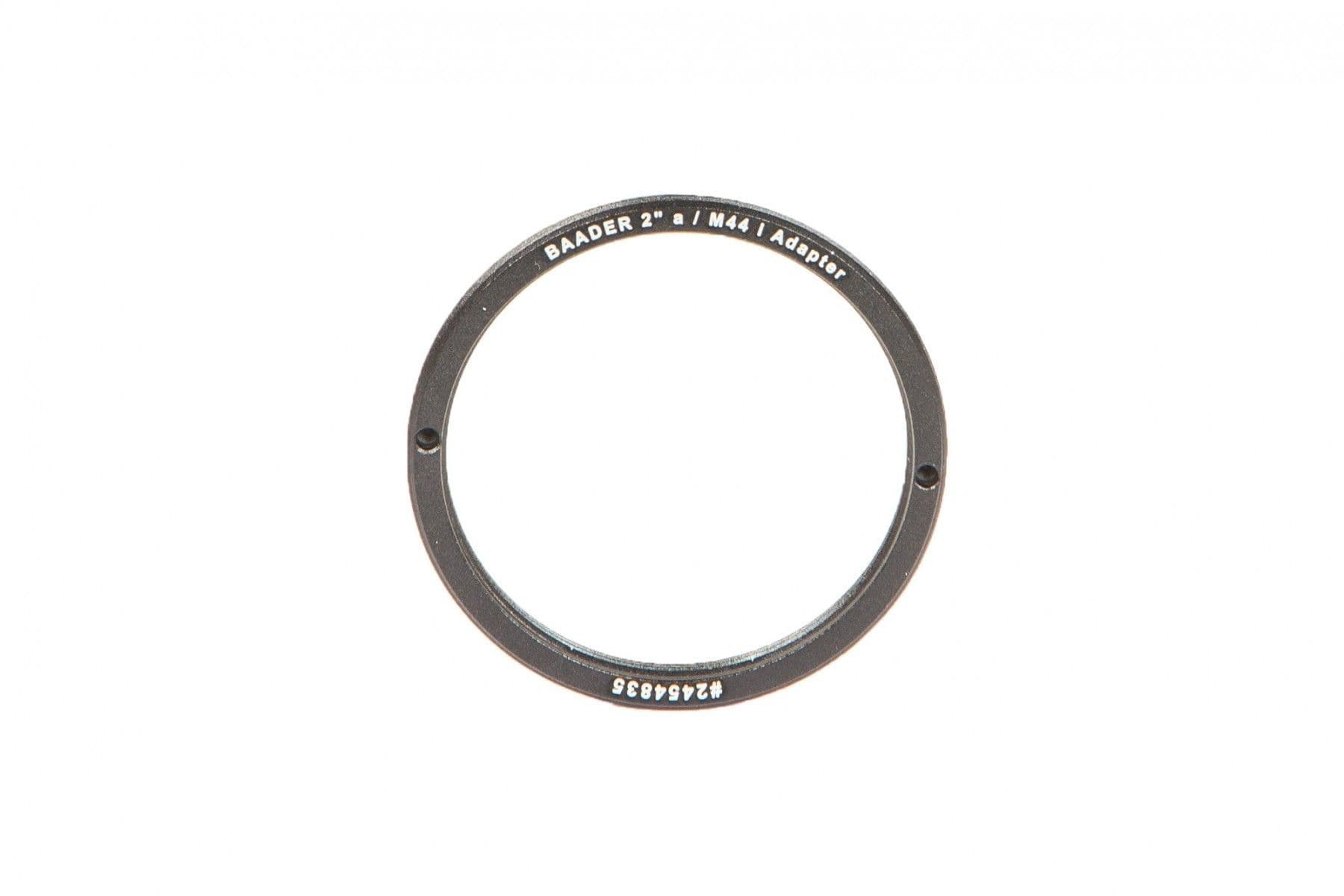

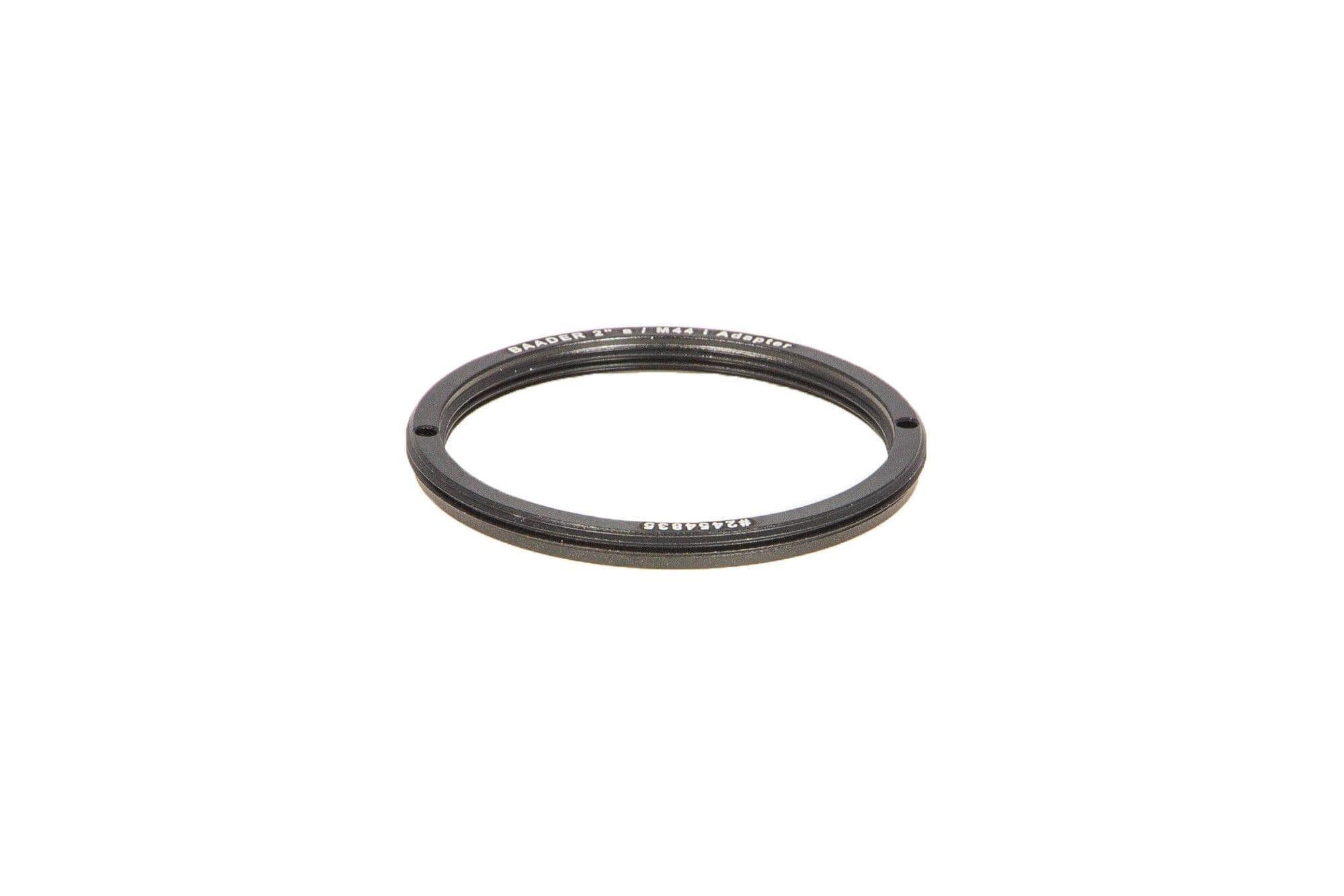

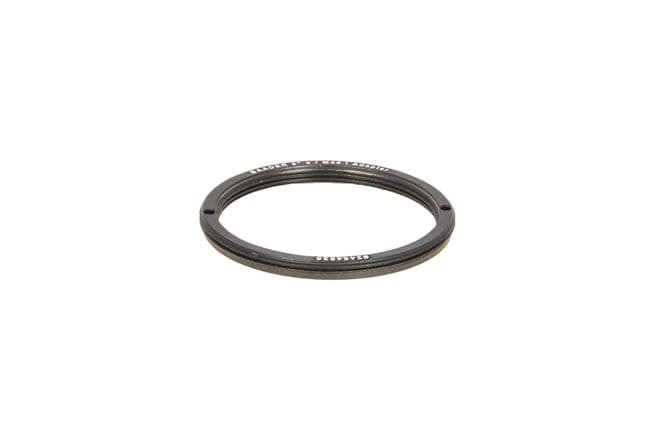

Baader Mark IV Zoom Adapter 2"/SCTa to M44i – Zero-Length

 Baader Mark IV Zoom Adapter 2"/SCTa to M44i – Zero-Length

• converts any 2" (SC) female thread into a M44 x 1 female thread - without extending the optical length
• manufactured to adapt our Hyperion Universal Zoom Mark IV onto most spotting scopes (see animation on the right)
• Note: for fitting the optical nose of the Zoom into the receptor at some spotting scopes, the thin dust cover ring needs to be removed - see images
• suitable for adaptation to Leica spotting scope with male M44 x 1 connection thread. Also suitable for all M44x1 threads according to the old Zeiss (Jena) standard.
• Adapter with continuous 2" male and M44 x 1 female thread as well as two face holes (recommended mounting accessory: Adjustable pin type face wrench ø 2mm (#2450062)

MANUFACTURER	Baader Planetarium
SKU (#)	2454835
INNER DIAMETER / CLEAR APERTURE (MM)	43
OUTER DIAMETER	50,8mm (2" SC)
INNER CONNECTION (LENS SIDED)	Thread, M44
OUTER CONNECTION (LENS SIDED)	Thread, 2" (50,8mm)
INNER CONNECTION (EYEPIECE/-CAMERA-SIDED)	Thread, M44
OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED)	Thread, 2" (50,8mm)
TYPE OF ADAPTER	Reducing piece
