Baader Mark IV Zoom Adapter 2"/SCTa to M41.5i – Zero-Length

Name: Baader Mark IV Zoom Adapter 2"/SCTa to M41.5i – Zero-Length
Brand: Baader
Price: 34.00 GBP
Availability: InStock

Product code: 2454832

in stock

[value]

£34.00 UK Price

£28.33 (ex. VAT) International Price

Product information

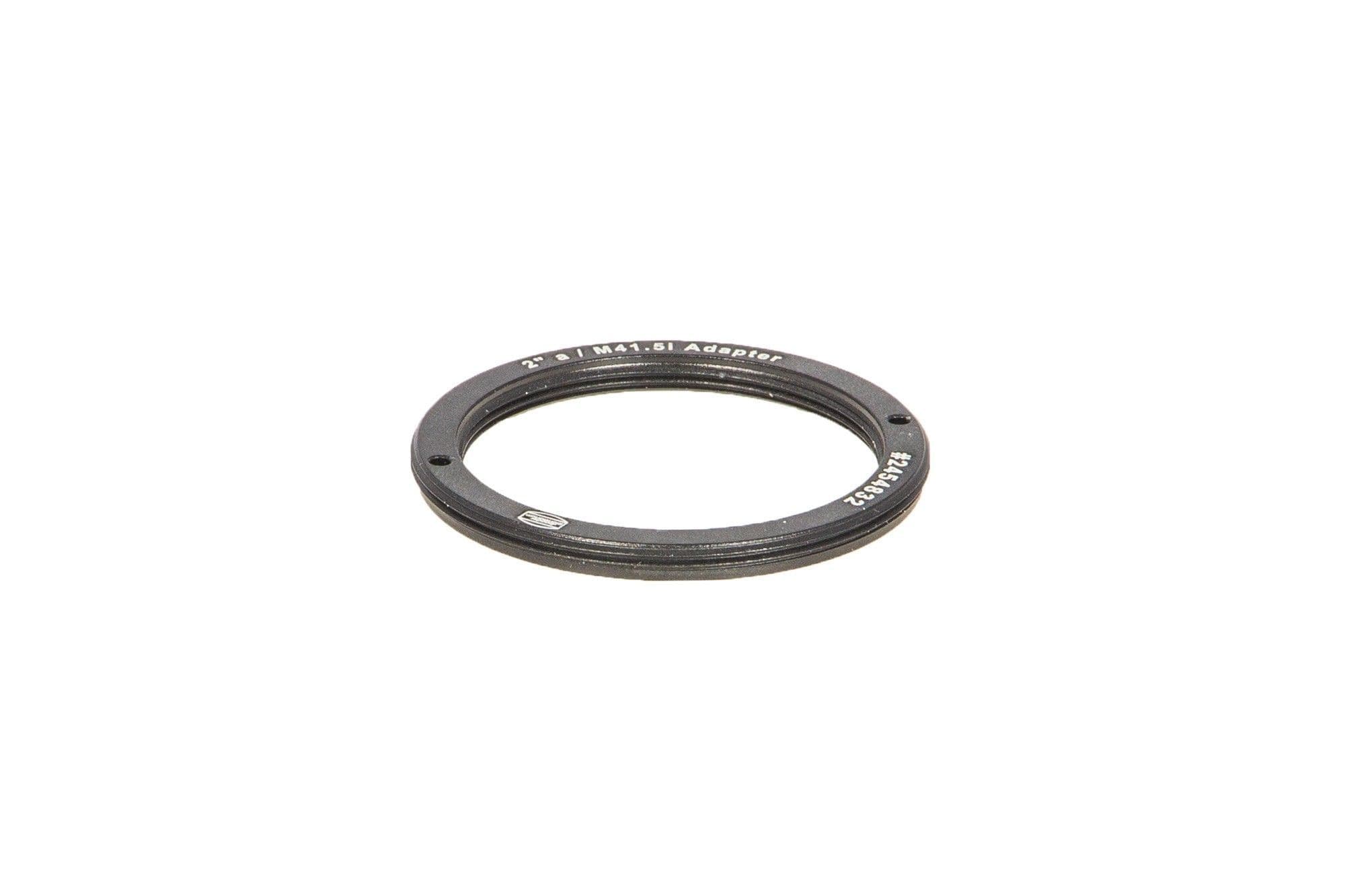

converts any 2" (SC) female thread into a M41.5 x 1 female thread - without extending the optical length

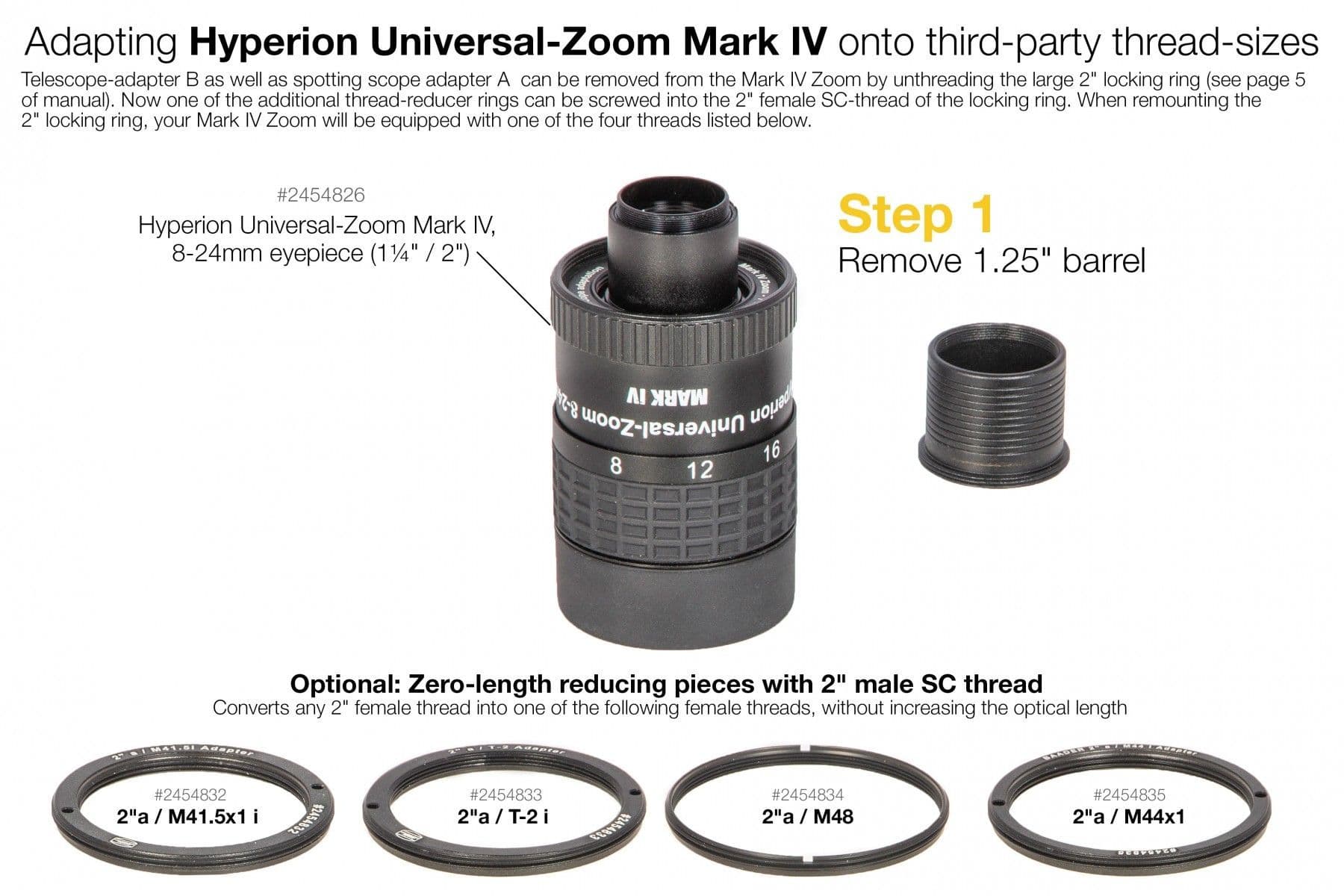

manufactured to adapt our Hyperion Universal Zoom Mark IV straight onto any spotting scope - such as Bausch & Lomb-, Opticron- and Kowa-Base - equipped with M41.5 male thread (see animation on the right)
Note: for fitting the optical nose of the Zoom into the receptor at some spotting scopes, the thin dust cover ring needs to be removed - see images
Adapter with continuous 2" male and M41,5 x 1 female thread as well as two face holes (recommended mounting accessory: adjustable pin-type face wrench #2450062)

MANUFACTURER	Baader Planetarium
SKU (#)	2454832
INNER DIAMETER / CLEAR APERTURE (MM)	40,5
OUTER DIAMETER	50,8mm (2" SC)
INNER CONNECTION (LENS SIDED)	Thread, M41,5
OUTER CONNECTION (LENS SIDED)	Thread, 2" (50,8mm)
INNER CONNECTION (EYEPIECE/-CAMERA-SIDED)	Thread, M41,5
OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED)	Thread, 2" (50,8mm)
TYPE OF ADAPTER	Reducing piece
