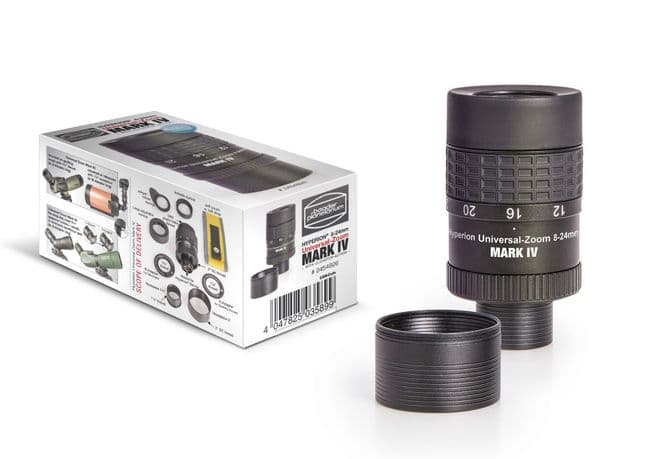

Baader Hyperion Zoom Eyepiece
Baader Hyperion Zoom Eyepiece
Baader Hyperion Zoom Eyepiece
Baader Hyperion Zoom Eyepiece
Baader Hyperion Zoom Eyepiece

Baader Hyperion Zoom Eyepiece

Product code: 2454826
in stock
Check stock level or request price match
[value]
£237.00 UK Price
£197.50 (ex. VAT) International Price
PayPal Checkout

Product information

  • Hyperion Universal Zoom Mark IV: fourth generation of Baader-Zoom, 68° Widefield eyepiece with five magnifications - focal lenghts 8, 12, 16, 20 and 24mm clearly defined with "smoothed-out" improved Clickstop Action (a must for effortless binoviewing)
  • Long eye relief, perfectly matched to the human eye. Flatfield design sharp right to the edge of field
  • High Quality Phantom Coating Group Multicoatings! For faintest objects, maximum contrast and total freedom from reflections
  • Large adjustable rubber eyecup, smaller straight rubber eyecup and winged, foldable eyecup included, to fit over M43 photo/video-thread
  • M43-Video-Photo thread for afocal and classical projection photography, permits optional adaptation of practically any camera with optional accessories
  • Includes 2" and 1¼" barrel, usable for all 1¼" binoculars with detachable eye-rest and spotting scope with 1 3/8" thread (Celestron / Sky-Watcher and others)
    • Includes all features of the popular Hyperion Zoom Mark III, as well as
    • low weight (290g/10,2oz), slim design of 55mm diameter (perfect for binoviewing)
    • Zero-Tilt safety kerfs instead of the hated undercuts in the barrels
    • Includes 2" SC-thread for shortest possible adaptation to telescopes or prisms/mirrors
    • 4mm backfocus-gain with spotting scope A-Ring (included): the Mark IV focuses with all tested spotting scopes (optional adapters available for most major brands)
    • Sufficient distance to clamping screws with telescope adapter B-Ring (included)
    • Eyepiece holster with belt strap hold also firmly on tripod legs
  • Please also note the detailed product description as well as the PDF Hyperion Universal Zoom Mark IV instruction manual
GENERAL
MANUFACTURER Baader Planetarium
SKU (#) 2454826
WEIGHT (NETTO) 0.290
EYEPIECE SERIES Hyperion
SPECIFICATIONS
FOCAL LENGTH 8 - 24 mm
APPARENT FIELD OF VIEW 48° - 68°
AR-COATING Phantom Coating® Group
PARFOCAL EYEPIECES Yes
BARREL SIZE (IN) 1¼", 2"
OPTICAL DESIGN Modular
SPECIALITY Eyepiece projection: afocal, Eyepiece projection: classical
EYEPIECE DESIGN
NUMBER OF LENS ELEMENTS 7
NUMBER OF GROUPS 4
SLIP PROTECT SAFETY Safety Kerfs
EYEPIECE BODY ABOVE REFERENCE PLANE (MM) 81 mm
LENGTH OF 1¼" BARREL (MM) 24,5 mm
LENGTH OF 2" BARREL (MM) 27 mm
OUTER DIAMETER 55 mm
CONNECTIONS
OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) Thread, M43
INNER CONNECTION (LENS SIDED) Thread, 1 3/8", 2" (50,8mm)
OUTER CONNECTION (LENS SIDED) Barrel, 1¼", 2" (50,8mm)
CAMERA THREAD M43
THREADED FOR FILTERS Yes
INCLUDED ITEMS
DUSTCAPS 1¼" dustcap (31,8mm), 2" dustcap (45mm), 2" dustcap (46.5mm - fits over eyecup)
EYECUPS large height adjustable eyecup (M43), small eyecup (M43), winged eyecup (M43)

Product Info

MPN 2454826
EAN 4047825035899
GTIN 4047825035899
Brand Baader
Product Code 2454826
Delivery Weight Package
 1kg
