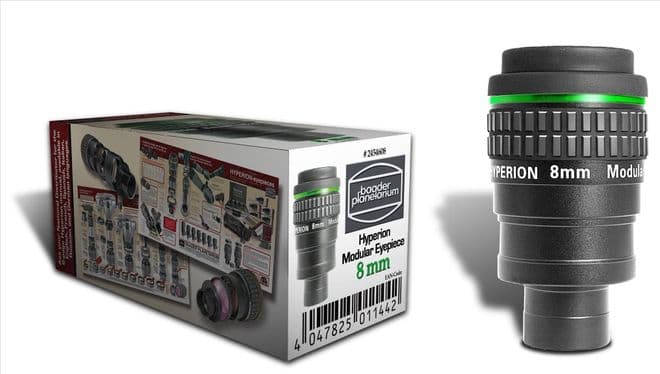

Baader Hyperion Eyepiece 8mm

Product code: 2454608
in stock
[value]
£142.00 UK Price
£118.33 (ex. VAT) International Price

PREORDER : 2 weeks

PayPal Checkout
You will earn 142 loyalty points with this purchase

Product information

  • Fixed focal length of 8mm, 68° field of view ease of view even at high magnifications!
  • High quality Phantom Group-Coating in Zeiss class for complete freedom from reflections with maximum contrast
  • 1¼" and 2" barrels included, thus variable focal lengths
  • Includes many threads for camera and accessory adaptation, afocal and classical eyepiece projection
GENERAL
MANUFACTURER Baader Planetarium
SKU (#) 2454608
EAN CODE 4047825011442
WEIGHT (NETTO) 0.453
EYEPIECE SERIES Hyperion
SPECIFICATIONS
FOCAL LENGTH 8 mm
APPARENT FIELD OF VIEW 68°
EYE RELIEF (MM) 20 mm
AR-COATING Phantom Coating® Group
PARFOCAL EYEPIECES Yes
BARREL SIZE (IN) 1¼", 2"
OPTICAL DESIGN Modular
SPECIALITY Eyepiece projection: afocal, Eyepiece projection: classical
EYEPIECE DESIGN
FIELD STOP DIAMETER 9,5 mm
FIELD STOP DISPLACEMENT TO REFERENCE PLANE -23,5 mm
NUMBER OF LENS ELEMENTS 8
NUMBER OF GROUPS 5
SLIP PROTECT SAFETY Classic Undercut
EYEPIECE BODY ABOVE REFERENCE PLANE (MM) 67,8
LENGTH OF 1¼" BARREL (MM) 24 mm
LENGTH OF 2" BARREL (MM) 47,5 mm
OUTER DIAMETER 58 mm
CONNECTIONS
OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) Thread, M43
INNER CONNECTION (LENS SIDED) Thread, M28,5, M48
OUTER CONNECTION (LENS SIDED) Barrel, 1¼", 2" (50,8mm)
CAMERA THREAD M43, SP54
THREADED FOR FILTERS Yes
INCLUDED ITEMS
DUSTCAPS 1¼" dustcap (31,8mm), 2" dustcap (45mm), 2" dustcap (46.5mm - fits over eyecup)
EYECUPS folding eyecup (M43)
INCLUDED ACCESSORIES Soft-leather bag

Product Info

PREORDER 2 weeks
EAN 4047825011442
MPN 2454608
GTIN 4047825011442
Brand Baader
Product Code 2454608
Delivery Weight Package
1kg
