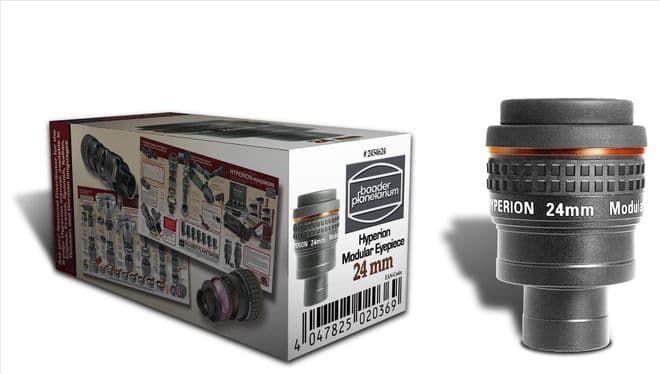

Baader Hyperion Eyepiece 24mm, (Fixed Focal Length)

Name: Baader Hyperion Eyepiece 24mm, (Fixed Focal Length)
Brand: Baader
SKU: 2454624
Price: 142.00 GBP
Availability: InStock

Product code: 2454624

in stock

[value]

£142.00 UK Price

£118.33 (ex. VAT) International Price

You will earn 142 loyalty points with this purchase

Product information

Fixed focal length of 24mm, 68° field of view ease of view even at high magnifications!
High quality Phantom Group-Coating in Zeiss class for complete freedom from reflections with maximum contrast
1¼" and 2" barrels included. Note the 24mm is NOT variable
Includes many threads for camera and accessory adaptation, afocal and classical eyepiece projection is possible

GENERAL
MANUFACTURER	Baader Planetarium
SKU (#)	2454624
EAN CODE	4047825020369
WEIGHT (NETTO)	0.383
EYEPIECE SERIES	Hyperion
SPECIFICATIONS
FOCAL LENGTH	24 mm
APPARENT FIELD OF VIEW	68°
EYE RELIEF (MM)	17 mm
AR-COATING	Phantom Coating® Group
PARFOCAL EYEPIECES	No
BARREL SIZE (IN)	1¼", 2"
OPTICAL DESIGN	Modular
SPECIALITY	Eyepiece projection: afocal, Eyepiece projection: classical
EYEPIECE DESIGN
FIELD STOP DIAMETER	28,5
FIELD STOP DISPLACEMENT TO REFERENCE PLANE	-20 mm
NUMBER OF LENS ELEMENTS	8
NUMBER OF GROUPS	5
SLIP PROTECT SAFETY	Classic Undercut
EYEPIECE BODY ABOVE REFERENCE PLANE (MM)	52,9 mm
LENGTH OF 1¼" BARREL (MM)	24 mm
LENGTH OF 2" BARREL (MM)	42,9 mm
OUTER DIAMETER	58 mm
CONNECTIONS
OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED)	Thread, M43
INNER CONNECTION (LENS SIDED)	Thread, M28,5, M48
OUTER CONNECTION (LENS SIDED)	Barrel, 1¼", 2" (50,8mm)
CAMERA THREAD	M43, SP54
THREADED FOR FILTERS	Yes
INCLUDED ITEMS
DUSTCAPS	1¼" dustcap (31,8mm), 2" dustcap (45mm), 2" dustcap (46.5mm - fits over eyecup)
EYECUPS	folding eyecup (M43)
INCLUDED ACCESSORIES	Soft-leather bag
