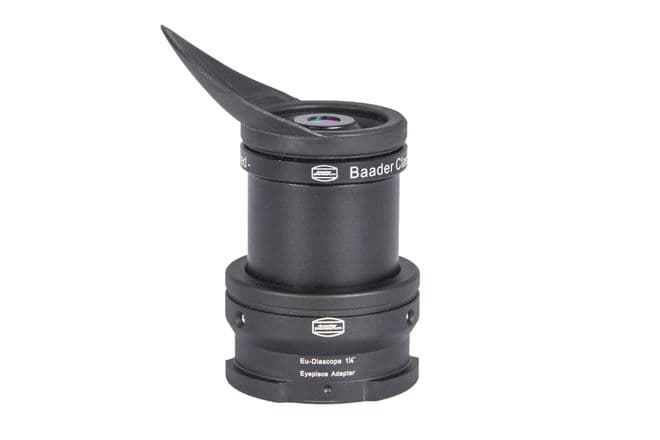

Baader High magnification 3 mm (optional 6 mm) Spotting-Scope-Eyepiece (6 mm Classic-Ortho w. Hyperion-Barl
Product information
- 3 mm (optional 6 mm) Spotting-Scope-Eyepiece (6 mm Classic-Ortho w. Hyperion-Barlow-Lensset, incl. Baader-bayonet-adapter) for Zeiss-Diascope
- Remarkable eyepiece, without color fringing, sharp to the edge of field with great eye relief
- includes Allen Wrench key and two O-rings to adjust stiffness when switching eyepieces
Dedicated high magnification 3 mm spotting-scope eyepiece (optional 6 mm), incl. bayonet-adapter for Zeiss-Diascope
consisting of: 6 mm Classic-Ortho-Eyepiece, directly coupled onto the lens holder of the field flattening Hyperion-Zoom-Barlow, incl. Baader-Diascope-bayonet-adapter. The triplet-lens Hyperion-Barlow is designed to compensate for the short focal length of spotting scopes. The lens set works as field flattener and provides perfect sharpness to the edge of field. The 6 mm eyepiece can be detached from the barlow lens set and mounted onto the spotting scope with the supplied Baader-Diascope-Bayonet.
Two magnifications are provided with this product:
Zeiss Diascope 65 T*FL w. 384mm fl and above (#2454507) combo of parts: 3 mm (w. Barlow mounted): 128x / 6 mm (w/o Hyperion-Zoom-Barlow-lensset): 64x
Zeiss Diascope 85 T*FL w. 502mm fl and above (#2454507) combo of parts: 3 mm (w. Barlow mounted): 167x / 6 mm (w/o Hyperion-Zoom-Barlow-lensset): 84x
Informationen on the Diascope Bayonet-Adapter
For astronomical use, you need a fast eyepiece change, without changing the orientation of the Diascope. We therefore provide the eyepiece adapter without a mounted sealing ring, so that the eyepieces can be switched easily. The bayonet has got an undercut, which serves to receive one of the two supplied O-rings. If you prefer a sealing ring, you can adjust the stiffness when switching eyepieces between tight (large O-ring) and light (small Oring) with these two different rings. The image shows the undercut to place the O-Rings
-
GENERAL MANUFACTURER Baader Planetarium SKU (#) 2454507 EAN CODE 4047825011541 WEIGHT (NETTO) 0.203 SPECIFICATIONS EYEPIECE DESIGN OUTER DIAMETER 41 mm CONNECTIONS INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) Clamp, 1¼" OUTER CONNECTION (LENS SIDED) Bayonet THREADED FOR FILTERS Yes
Product Info
PREORDER | 2 weeks |
EAN | 4047825036179 |
MPN | 2454507 |
GTIN | 4047825036179 |
Brand | Baader |
Product Code | 2454507 |
Delivery Weight Package
|
1kg |
