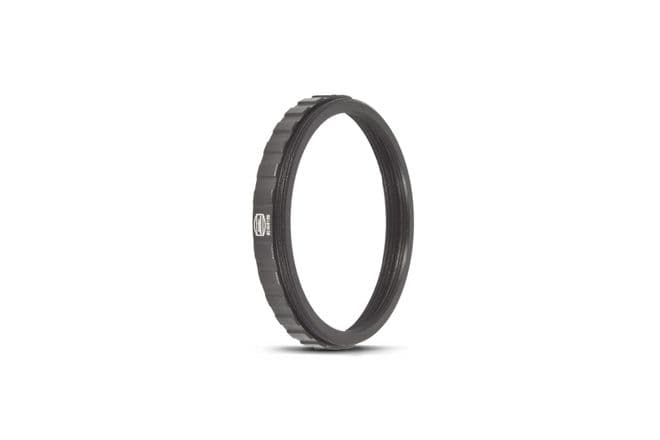

Baader DSLR-2" Filter Holder M48/SP54v
Product information
- Allows mounting of Baader 2" filters
- Needs Hyperion DT-rings #2958028 - 2458062 and additional Stepper Rings M67 up to M82
- All Baader 2" filters in version M48 thread can be customised with specific extension tubes on almost all DSRL lenses.
Adaptation of 2 inch filters onto DSLR camera-lenses
2 Inch Baader Filter Adaptation for DSLR Camera Lenses
Many astronomical filter-designs are perfectly suited for use with a DSLR-camera lens. Here we explain how to do this.
Our largest cell mounted filters measure 2" in mechanical diameter (having a metric thread of M48). The clear aperture is 46 mm.
In order to ease the adaptation of our 2" filters onto most camera lenses, we produce a general-adapter, to convert from the ASTRO-2" Standard (M48) into a more common photo-standard of SP54 mm. This ring is named: DSLR 2" FilterHolder M48/SP54 (item #2408166).
Individual lens adapters for most camera-lens threads are available to fit onto this filter holder. Larger lens threads may be utilized by adding another 62 mm stepper-ring.
Lens Adapter Ring: SP 54/M46 (#2958046) / SP 54/M49 (#2958049) / SP 54/M52 (#2958052) / SP 54/M55 (#2958055) / SP 54/M58 (#2958058) / SP 54/M62 (#2958062).
Step-up Rings (for cameras lenses with thread larger than M62): M62/M67 (#2968067), M62/M72(#2968072), M62/M77(#2968077), M62/M82(#2968082).M62/M67 (# 296 8067), M62/M72 (# 296 8072), M62/M77 (# 296 8077), M62/M82 (# 296 8082)
The animation right show how it works: The lens thread adapter (in this case M62 or M55 or M49) fastens onto the camera lens, next comes the Filter-Holder M48 (# 2408166) and lastly any 2" (M48) Baader-filter will thread onto the assembly.
-
MANUFACTURER Baader Planetarium SKU (#) 2408166 EAN CODE 4047825012678 WEIGHT (NETTO) 0.01 OPTICAL LENGTH (MM) 5 USAGE to mount our 2" filters on any DSLR camera lens INNER DIAMETER / CLEAR APERTURE (MM) 47 OUTER DIAMETER 56 INNER CONNECTION (LENS SIDED) Thread, 2" (50,8mm) INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) Thread, M48 OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) Thread, SP54 ADAPTABLE TO DSLR camera-lenses COMPATIBLE BRANDS Baader Planetarium TYPE OF ADAPTER Expanding piece, Filter holder
Product Info
| PREORDER | 2 weeks |
| EAN | 4047825012678 |
| MPN | 2408166 |
| GTIN | 4047825012678 |
| Brand | Baader |
| Product Code | 2408166 |
|
Delivery Weight Package
|
1kg |
