Baader Classic Orthoscopics & Plossl Eyepiece 32mm

Name: Baader Classic Orthoscopics & Plossl Eyepiece 32mm
Brand: Baader
SKU: 2954132
Price: 39.00 GBP
Availability: InStock

Product code: 2954132

in stock

[value]

£39.00 UK Price

£32.50 (ex. VAT) International Price

You will earn 39 loyalty points with this purchase

Product information

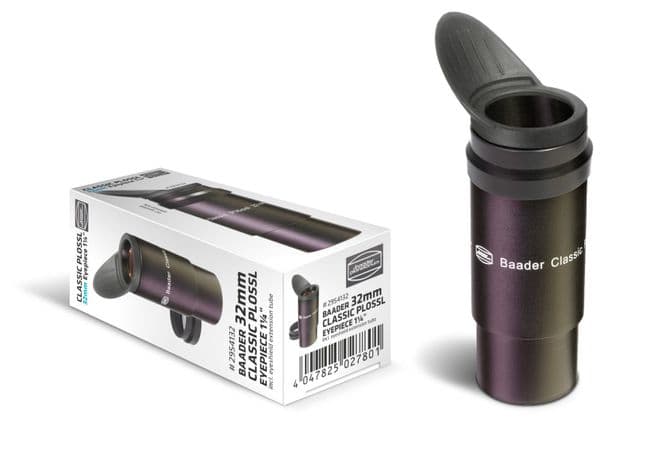

Baader Classic Plössl 32mm 1¼" eyepiece, apparent field of view 50°, with aux spacer tube and winged rubber eyecup
Parfocal Eyepiece series with very high transmission
This eyepiece delivers a pure-white image with outstanding sharpness and contrast
True High-Transmission- (HT) Multi-Coating (MC) on all glass-air-surfaces offer a brilliant image while showing almost no internal reflections
Suitable as projection eyepiece for ADPS (Afocal Digital Projection System)

GENERAL
MANUFACTURER	Baader Planetarium
SKU (#)	2954132
EAN CODE	4047825027801
WEIGHT (NETTO)	0.108
EYEPIECE SERIES	Classic (Q-Turret)
SPECIFICATIONS
FOCAL LENGTH	32 mm
APPARENT FIELD OF VIEW	50°
EYE RELIEF (MM)	21 mm
AR-COATING	High transmission multi-coated (HT-MC)
PARFOCAL EYEPIECES	Yes
BARREL SIZE (IN)	1¼"
OPTICAL DESIGN	Ploessl
SPECIALITY	Eyepiece projection: afocal
EYEPIECE DESIGN
FIELD STOP DIAMETER	26 mm
NUMBER OF LENS ELEMENTS	4
NUMBER OF GROUPS	2
SLIP PROTECT SAFETY	Classic Undercut
EYEPIECE BODY ABOVE REFERENCE PLANE (MM)	54,8 mm
LENGTH OF 1¼" BARREL (MM)	24 mm
OUTER DIAMETER	34,8 mm
CONNECTIONS
INCLUDED ITEMS
DUSTCAPS	1¼" dustcap (31,8mm)
EYECUPS	winged eyecup (1¼")
OPTIONAL ACCESSORIES	Q-Turret Eyepiece Revolver
