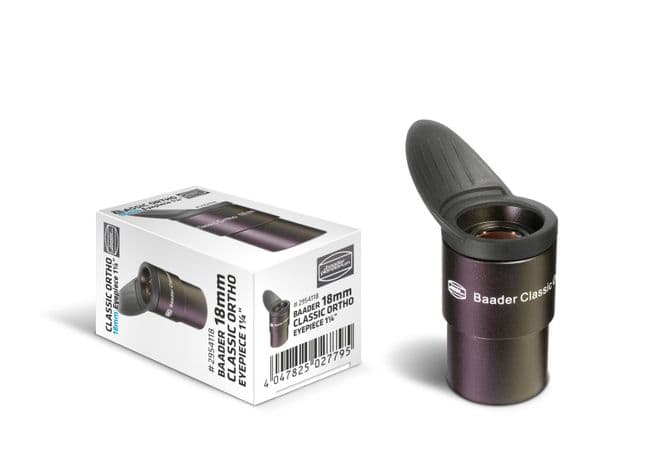

Baader Classic Orthoscopics & Plossl Eyepiece 18mm

Name: Baader Classic Orthoscopics & Plossl Eyepiece 18mm
Brand: Baader
Price: 43.00 GBP
Availability: InStock

Product code: 2954118

in stock

[value]

£43.00 UK Price

£35.83 (ex. VAT) International Price

£54.00 SRP

Product information

Baader Classic Ortho 18mm 1¼" Eyepiece, apparent field of view 52°, incl. winged rubber eyecup 52°,incl. winged rubber eyecup
Parfocal Eyepiece series with very high transmission
This eyepiece delivers a pure-white image with outstanding sharpness and contrast
True High-Transmission- (HT) and Multi-Coating (MC) on all glass-air-surfaces offer a brilliant image while showing almost no internal reflections
Suitable as projection eyepiece for OPFA (Eyepiece Projection adapter)

GENERAL
MANUFACTURER	Baader Planetarium
SKU (#)	2954118
EAN CODE	4047825027795
WEIGHT (NETTO)	0.088
EYEPIECE SERIES	Classic (Q-Turret)
SPECIFICATIONS
FOCAL LENGTH	18 mm
APPARENT FIELD OF VIEW	52°
EYE RELIEF (MM)	14,67 mm
AR-COATING	High transmission multi-coated (HT-MC)
PARFOCAL EYEPIECES	Yes
BARREL SIZE (IN)	1¼"
OPTICAL DESIGN	Orthoscopic
SPECIALITY	No Speciality (standard eyepiece)
EYEPIECE DESIGN
FIELD STOP DIAMETER	16,8 mm
NUMBER OF LENS ELEMENTS	4
NUMBER OF GROUPS	2
SLIP PROTECT SAFETY	Classic Undercut
EYEPIECE BODY ABOVE REFERENCE PLANE (MM)	30,46 mm
LENGTH OF 1¼" BARREL (MM)	24 mm
OUTER DIAMETER	34,8 mm
CONNECTIONS
INCLUDED ITEMS
DUSTCAPS	1¼" dustcap (31,8mm)
EYECUPS	winged eyecup (1¼")
OPTIONAL ACCESSORIES	Q-Turret Eyepiece Revolver
