Baader BDS-NT 1.5mm Strip-Shims (Spacer) – For NT Diamond Steeltrack

Baader BDS-NT 1.5mm Strip-Shims (Spacer) – For NT Diamond Steeltrack

• to connect to Skywatcher Refractors with M90x1.5 outer threads
• only suitable for BDS-RT Diamond Steeltrack® for Refractors

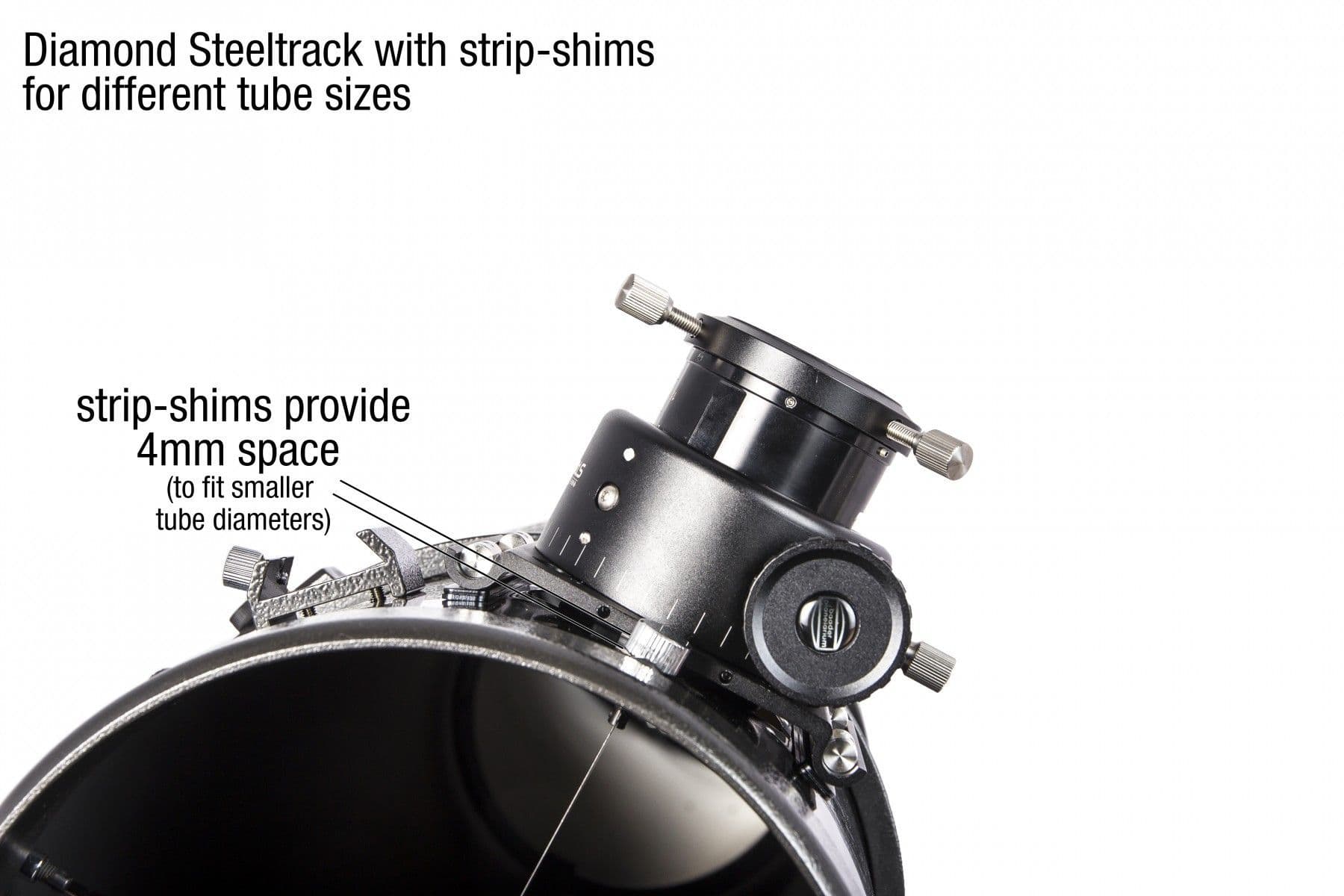

Using NT-strip-shims of Baader VersaBase
for different tube sizes

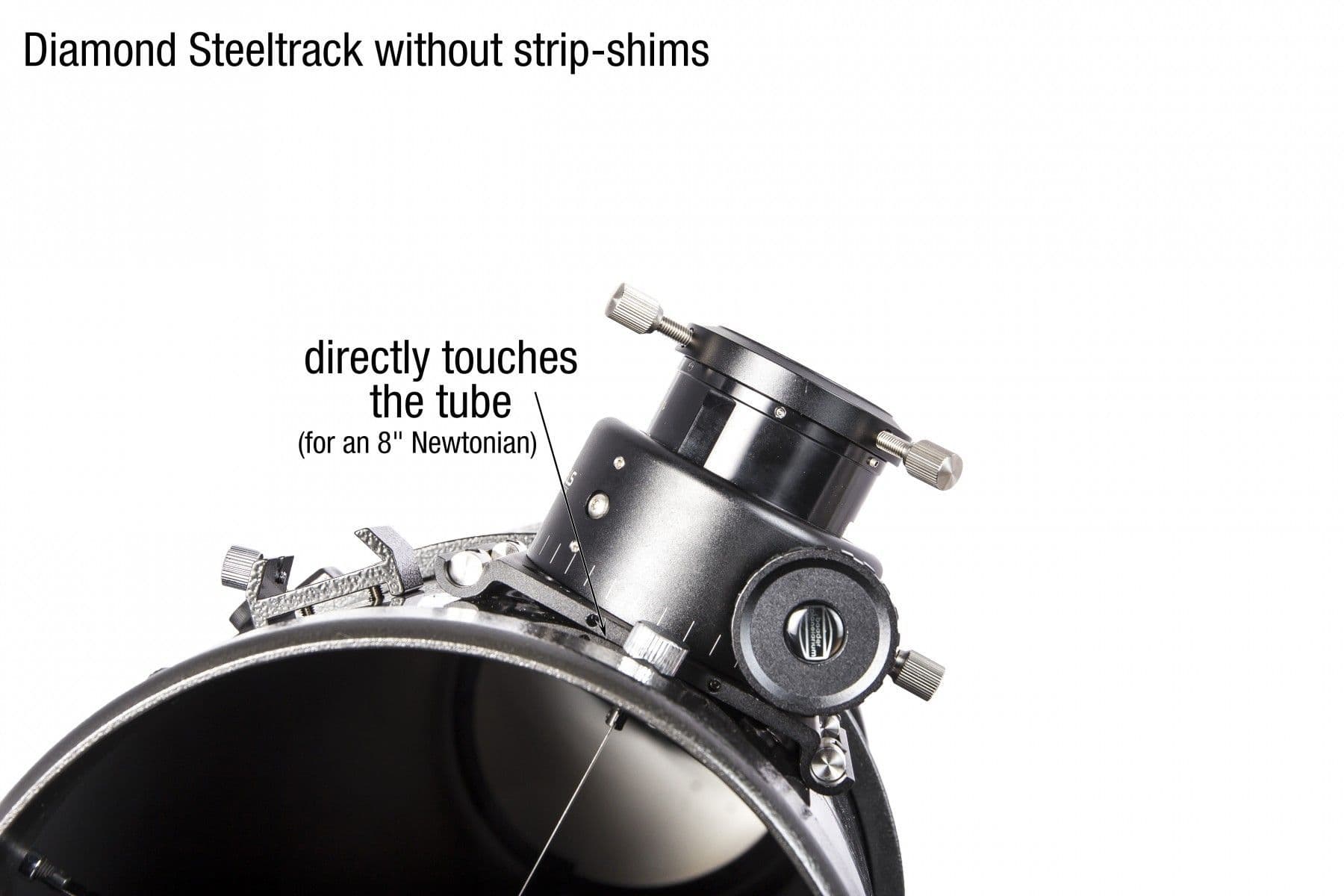

Our mounting instruction was made on a 8" Newtonian for these instruments our strip shims (adjustment spacers) are not needed. For other tube diameters, please use our strip shims between the telescope tube and the Baader VersaBase (the base of our BDS-NT Diamond Steeltrack®). You gain up to 4mm height (respectively more if you purchase additional strip-shims). Please note the self-explanatory gif to the left.

MANUFACTURER	Baader Planetarium
SKU (#)	2957235
OPTICAL LENGTH (MM)	1,5
CLAMPING SYSTEM	Dovetail clamp
SCREW TYPE	Metal screws with Delrin pressure piece
ADAPTABLE TO	BDS-RT Diamond Steeltrack for Refractors
COMPATIBLE BRANDS	Baader Planetarium
TYPE OF ADAPTER	Extension
