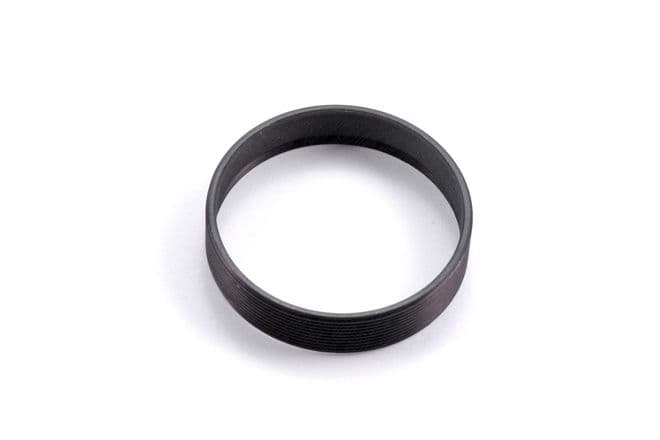

Baader 2"/2" Inverter Ring with 48mm filter thread

• Converts 2" female into 2" male thread
• Internal M48 Filter thread for 2" filter
• Can be used to connect Baader Hyperion Mark III Zoom directly to a Baader Star Diagnol gaining adfitional backfocus by swapping ClickLock-clamp for this adaptor.

2"/2" Inverter Ring Application example

Short information (and GIF-Animation) on how to mount the Mark III Zoom directly onto any of our 2" Mirror diagonals equipped with a ClickLock-clamp. In case of insufficiant backfocus or for permanent attachment onto the telescope (especially suited for public observatories), you can thread the Hyperion Zoom DIRECTLY onto any 2" SC/HD (Celestron-standard) telescope thread (were the Visual-Back fastens usually), or in case of the Baader 2" ClickLock star diagonal you can thread the Zoom directly onto the body of the Star Diagonal itself (gaining 47mm in backfocus) by removing the 2" ClickLock-clamp and adding the Baader ring 2" inner to 2"outer.r.

MANUFACTURER	Baader Planetarium
SKU (#)	1508020
EAN CODE	4047825016300
WEIGHT (NETTO)	0.014
WIDTH (MM)	12
USAGE	changes a 2" inner thread in 2" outer thread
INNER DIAMETER / CLEAR APERTURE (MM)	46
OUTER DIAMETER	50,8 (2")
OUTER CONNECTION (LENS SIDED)	Thread, 2" (50,8mm)
OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED)	Thread, 2" (50,8mm)
COMPATIBLE BRANDS	UNC, Baader Planetarium, Celestron
TYPE OF ADAPTER	Switcher ring
