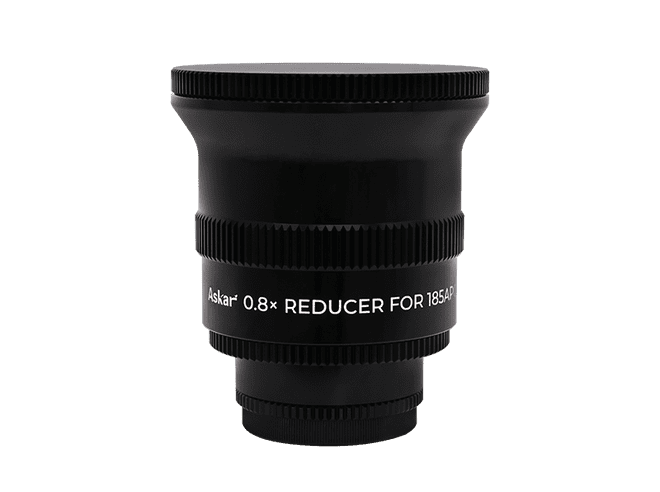

Askar 0.8x Full Frame Reducer for 185 APO Triplet
Product information
The 0.8x reducer can bring Askar 185APO's focal ratio down to F5.6. This is a standard reducer with field flattening capabilities as well. A shorter focal ratio allows the OTA to have a wider field of view and faster exposure times, making it suitable for capturing large areas of nebulae, star clusters, and faint, fast-moving celestial objects.
The 0.8x reducer adopts a quadruplet design and supports a 44mm full-frame image circle.The back focus from the M48 thread is a standard 55mm. The front thread is M92*1. At the camera end, it is equipped with M68*1, M54*0.75, and M48*0.75 three sizes of adapters, which are convenient for connection. At the same time, it has a built-in M48*0.75 2-inch filter thread, which can be directly installed and used. The overall CNC machined, both end threaded metal caps prevent ash when not in use.
Specifications
|
0.8x Reducer Parameters |
||
|
（After attaching）140APO Focal length |
1036mm |
|
|
（After attaching）140APO Focal ratio |
f/5.6 |
|
|
Lens Number |
Quadruplet design |
|
|
Back Focus |
55mm（from the base of M48 male thread） |
|
|
Weight |
0.95kg |
|
|
Rear-end thread type |
M68×1 |
|
|
0.8x Reducer Size Diagram |
|
0.8x Reducer Installation |
|
Spot Diagram |
Product Info
| MPN | ASKAR-RED185APO |
| Brand | ASKAR |
| Product Code | ASKAR-RED185APO |
|
Delivery Weight Package
|
1kg |
