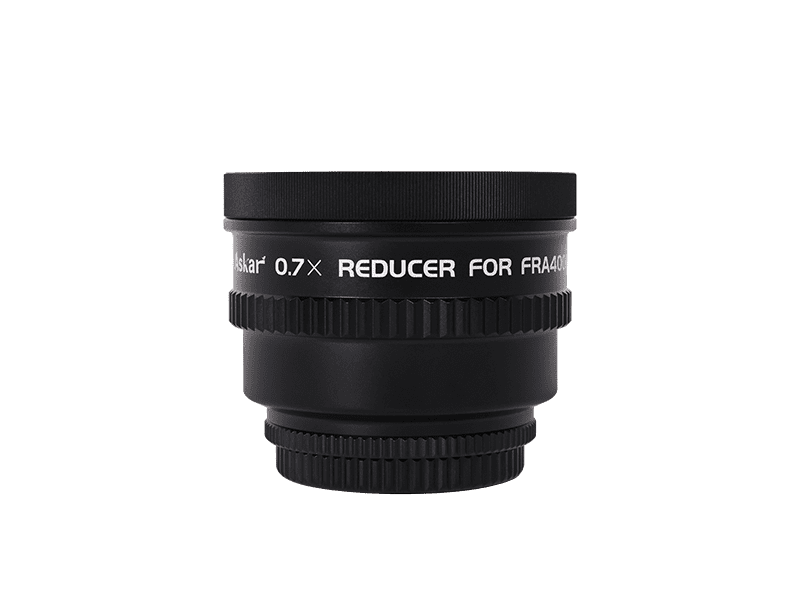

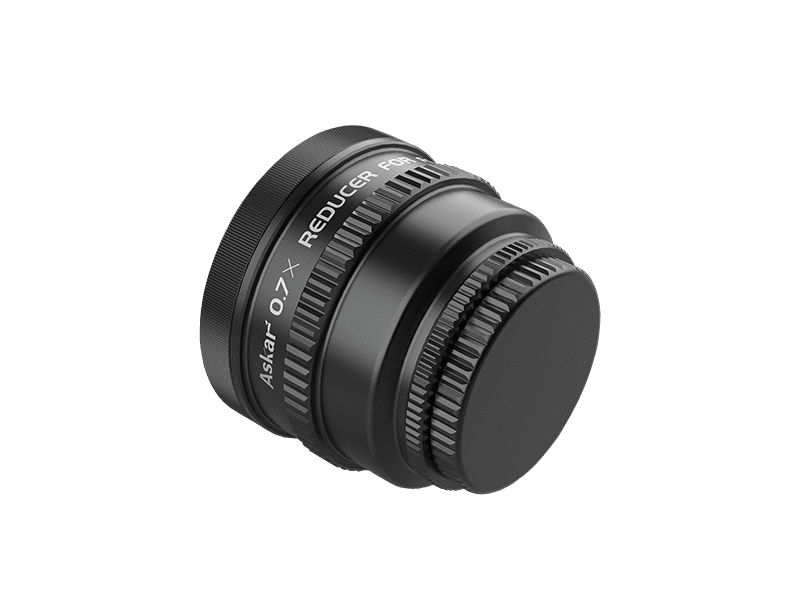

Askar 0.7x Full-Frame Reducer For FRA400C
Product information

Specially designed for the FRA400C, this 0.7x reducer adopts a triplet lens design, it can reduce the overall focal length to 280mm and the focal ratio to F3.9 while providing a flat-field correction. When used with the reducer, the FRA400C supports full-frame imaging and the back focus is a standard 55mm.
The shorter focal ratio enables the telescope to achieve a wider field of view and faster exposure times, making it ideal for capturing large nebulae, star clusters, as well as faint and fast-moving celestial objects.
The FRA400C reducer features an M48×0.75 rear-end adapter and has a built-in 2-inch filter thread for convenient filter attachment.

Specifications
|
0.7x Reducer Parameters |
||
|
(After attaching)FRA400C Focal length |
280mm |
|
|
(After attaching)FRA400C Focal ratio |
f/3.9 |
|
|
Lens Number |
Triplet design |
|
|
Back Focus |
55mm(from the base of M48 male thread) |
|
|
Weight |
0.46kg |
|
|
Rear-end thread type |
M48×0.75 (M48×0.75 filter thread inside) |
|
|
0.7x Reducer Size Diagram |

|
0.7x Reducer Installation |

|
Spot Diagram |

Product Info
| MPN | ASKAR-RED-FRA400C |
| SKU | ASKAR-RED-FRA400C |
| Brand | ASKAR |
| Product Code | ASKAR-RED-FRA400C |
|
Delivery Weight Package
|
0.8kg |
