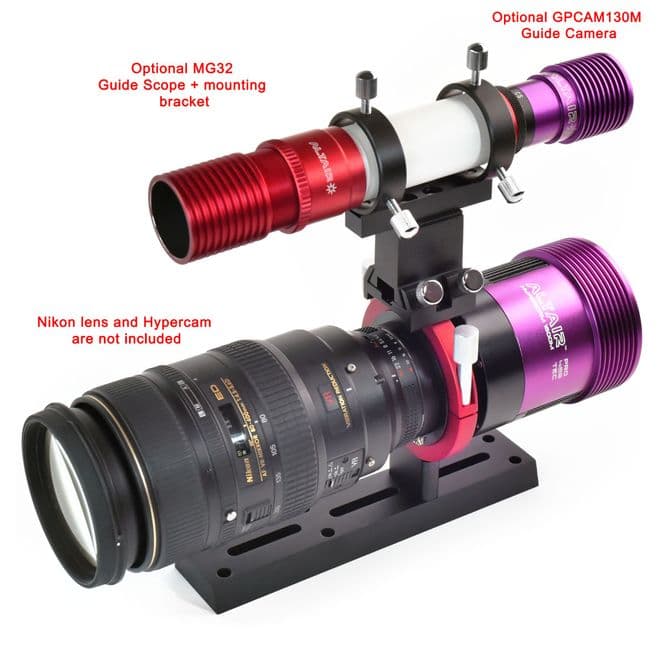

Altair Hypercam Nikon DSLR Lens Adaptor

Attach your Altair Hypercam CMOS Camera to a Nikon F-Mount Photographic lens for wide flat field astrophotography. Rotates for framing, and you can move the whole assembly back and forth on the dovetail bar for balancing. Mounts optional Altair Guide Scope on top.

To release the DSLR lens, pull the metal tab on the side of the assembly towards the back.

Features:

• Full frame clear aperture!
• Fits all Nikon F-Mount bayonet fit lenses.
• Internal 2" filter mounting position for 2" astro filters. Sealed chamber - control dust!
• Base has mounting stalk for back or forwards attachment to 200mm dovetail plate - enabling balance even with large lenses.
• Includes standard 200mm dovetail bar with multiple 1/4" M6 holes and slots.
• Mount the optional Altair MG32 Guide Scope and GPCAM Guide Camera on top with quick release bracket.

Choose the correct adapter for your Hypercam model when ordering:

• Product code: CLA-EOS-HYPERCAM-FAN to fit Hypercam FAN-Cooled models (12.5mm sensor to flange spacing).
• Product code: CLA-EOS-HYPERCAM-TEC to fit Hypercam TEC-Cooled models (17.5mm sensor to flange spacing).
• Product code: CLA-NIKON-HYPERCAM-FAN-MG32 to fit Hypercam TEC-Cooled models (12.5mm sensor to flange spacing) plus MG32 Guide Scope.
• Product code: CLA-NIKON-HYPERCAM-FAN-MG32-GP130M to fit Hypercam FAN-Cooled models (12.5mm sensor to flange spacing) plus MG32 Guide Scope and GPCAM130M Guide Camera.
• Product code: CLA-NIKON-HYPERCAM-TEC-MG32 to fit Hypercam TEC-Cooled models (17.5mm sensor to flange spacing) plus MG32 Guide Scope.
• Product code: CLA-NIKON-HYPERCAM-TEC-MG32-GP130M to fit Hypercam TEC-Cooled models (17.5mm sensor to flange spacing) plus MG32 Guide Scope and GPCAM130M Guide Camera.
