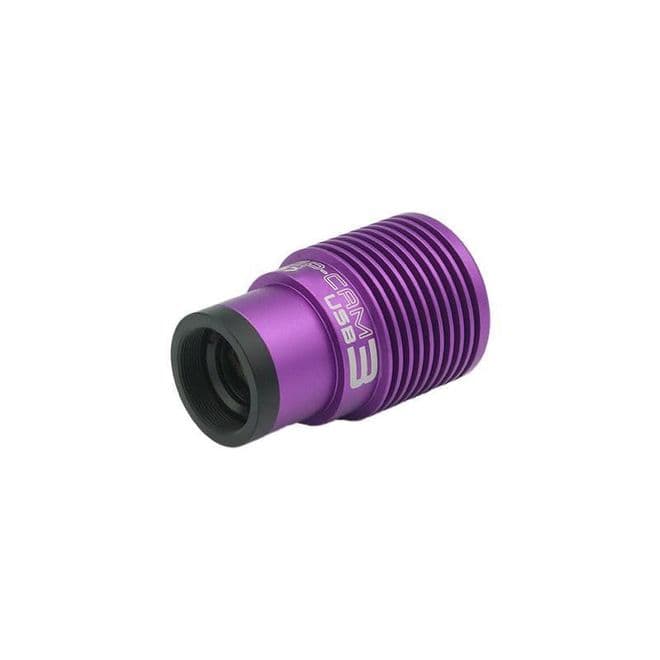

Altair GPCAM3 715C USB3 Colour Camera

Altair GPCAM3 715C Colour camera is a high resolution 8.3 megapixel, BSI colour camera with extremely low read noise. This next generation Sony IMX715 sensor can be used for high speed solar system imaging, or even video astronomy and deepsky imaging with a small refractor, thanks to the small pixel size. The 1/2.8-inch optical format is quite suitable for an Allsky camera lens (sold separately).

The ROI (Region of Interest) feature can be used for even higher frame rates when imaging the planets, sun or moon at high magnification.

SPECIAL OFFER! FREE 1 YEAR SharpCap PRO License with all Altair GPCAM3 Cameras! Click here for more SC PRO feature info. Just download the latest SharpCap, connect your camera, register when the screen pops up and sign up for your free license.  Sharpcap PRO has the amazingly accurate guide-scope polar alignment routine, focus assistance, live flat field subtraction and many more great features to make deepsky, EAA or solar system imaging that much easier. Download SharpCap now to take advantage of this special offer.

Key features:
- 8.3mp sensor with 1.45 micron pixels
- 7.7mm x 4.3mm active sensor area.
- Low read noise, approx. 1.35 - 0.57 electrons (e-) or better.
- Saturation (full well) capacity approx. 6.0Ke- electrons (e-)
- High Dynamic Range with 12 bit ADC for high image quality in both light and dark (high contrast) areas.

Technical specification:

Support & warranty: Altair delivers proper on-shore English-speaking UK/EU support with a 2 year manufacturer warranty against defects in materials and workmanship. New users should definitely visit the Altair Astro Facebook Group where you can get answers to technical questions, as well as sharing tips and techniques, to get the best out of your camera. The AltairCapture software interface supports most European languages including English, German, French, Indonesian, Japanese, Korean, Polish, Russian, Chinese, Spanish, Thai, and Turkish.

File formats: The camera can be fully controlled in AltairCapture and SharpCap to output uncompressed .AVI and .SER video files for solar system imaging, as well as all common still image formats such as .JPEG .PNG .TIFF .BMP, and .FITS (for deepsky imaging) to mention just a few. The sensor sensor is extremely sensitive and a good candidate for video astronomy, especially with small refractors  (final .FITS file is stretched to 16bit for post processing compatiblility). Find out more about bit depth here. Find out more about video & file formats here.

Included in the box:
Camera body.
1.5m High-speed USB3.0 cable.
1.5m ST4 guide cable.
1.25 inch x nosepiece with female 1.25" filter thread on the front.
(Optional 2" OD Nosepiece with dual 2 and 1.25" filter threads is available, code GPCAM-2IN)
CS-Mount insert (12.5mm back-focus) is pre-installed on camera. (Optional 5mm extension adapter is available for C-Mount lenses requiring 17.5mm back-focus.)
UV-IR Blocking Filter with Anti-Reflection coatings. (Removable for sensor cleaning).
Plastic dust cap 1.25".
Silicon dust cap for sensor.
Note: This camera does not come with software in the box. To operate the camera you will need to download the latest camera drivers at www.altairastro.help (opens new window)

Software & OS support:
Drivers & AltairCapture software download (Windows only): www.altairastro.help (opens new window).
Driver support: PHD2, AltairCapture, SharpCap
AltairCapture OS support: Win 8/10 64 bit
NOTE: Windows 10 64bit is recommended for best performance. A 2013 or later USB host controller v1.0 or later is recommended.
SharpCap (a 3rd party application) is also fully supported with native drivers.

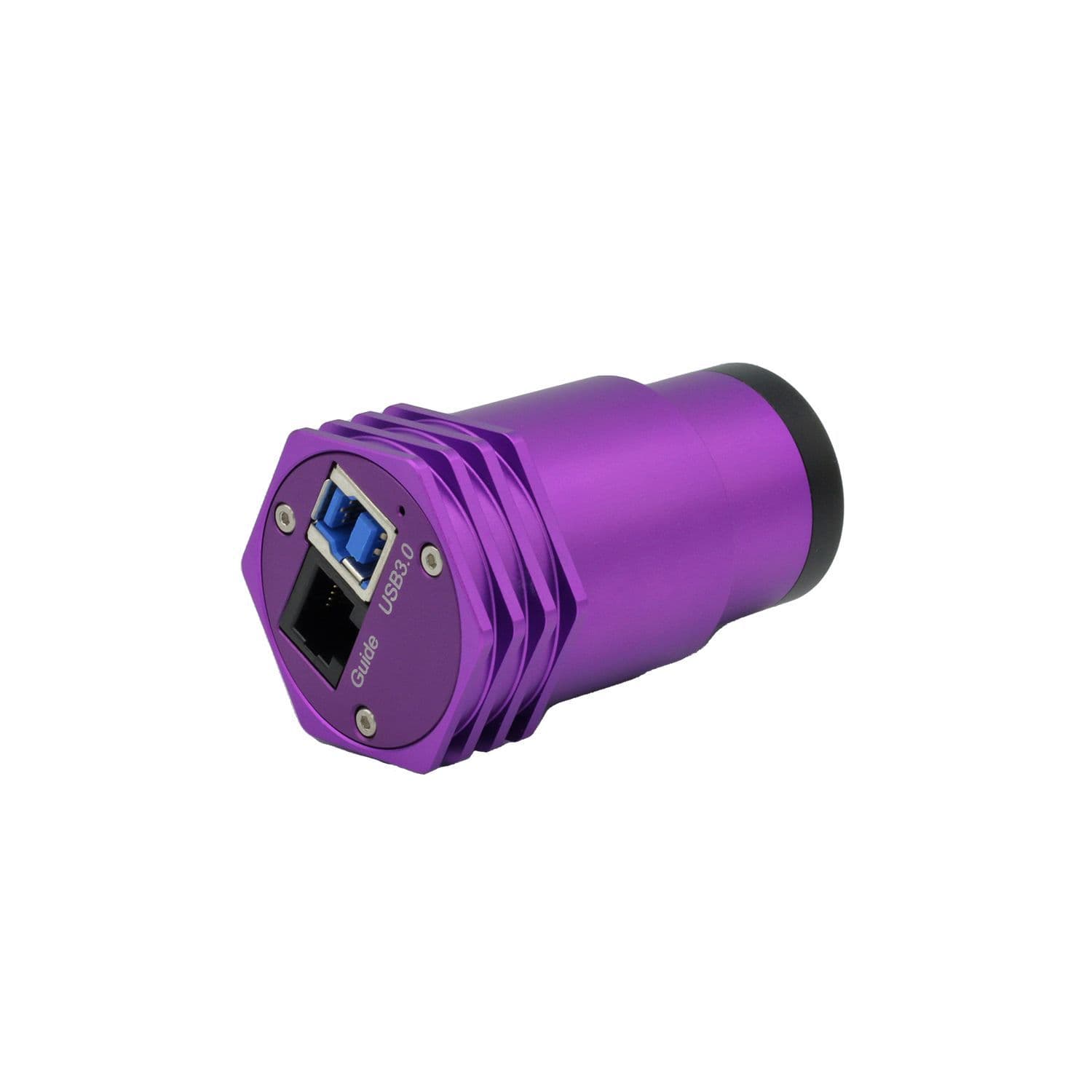

USB Port & Cable: 3.0 USB Cable, 1.5m cable (USB2.0 also supported at low frame rates).
ST4 Port & Cable: Standard ST4 Opto-Isolated, 1.5m cable, iOptron, Celestron, Skywatcher SynScan GOTO.

Camera Format:
CNC machined aluminium casing with external Heat-sink and internal cold-finger contacting rear of sensor.
Camera body length: 73 mm
Weight grams: 70 g (camera net weight)
Sensor cover-glass transmission:

Back-focus & Adapter compatibility:
Cover glass is removable for cleaning and can be swapped with a clear or UV/IR blocking glass as required.
CS-mount lens compatibility: C-Mount male threaded lens with 12.5mm back-focus (or flange-distance) requirement.
C-mount lens adapter 5mm extension: Optional
C-mount lens compatibility: C-Mount male threaded lens with 17.5mm back-focus (or flange-distance) requirement.
Astro filter thread adapter: Included, 1.25" OD and 2 OD (optional), Female thread
Sensor surface distance from flat end of CS-mount adapter: 12.5 mm
Sensor surface distance from flat end of 1.25" / M42 Astro adapter: 37 mm

Operating environment conditions:
Power consumption approx.:
                  0.3 W (standby)
                  1.0w (running)
Max operating temp: 50 °C
Lowest operating temp: -10 °C
Max operating humidity: 80 % RH
Power source in Volts: 5V DC (via USB cable)

Windows PC Hardware Requirements:
Minimum PC: Equal to Intel i3 4GB+ RAM Windows 10 OS with separate graphics card.
Recommended PC: ( 2013+ i5 4GB RAM Intel 1.0x USB Host Controller preferable with separate graphics)
USB port compatibility: USB2.0 High-speed Port or USB3.0 High-speed Port
(computers manufactured in 2013 or later give best USB speed).
Monitor Display: 17" or Larger recommended.
Software delivery: Downloaded online at www.altairastro.help and saved to hard drive.

Packaging:
Protective silicon rubber end-cap for camera CS-thread.
Plastic end cap for 1.25" nosepiece.
Padded cardboard storage box with durable foam inserts

Optional Accessories:
2 inch x 22mm nosepiece with dual 1.25" and 2 filter thread, code GPCAM-2IN. See associated products.
C-Mount 5mm extension adapter for C-Mount lenses requiring 17.5mm back-focus.
Spare Clear AR coated or UVIR coated optical windows available as spares.
Altair Astro Premium 1.25" CLS-CCD Filter with UV/IR Block & AR Coating (Code: F125CLSCCD) for imaging emission nebulae in light polluted urban environments.
Altair Astro Premium 2" CLS-CCD Filter with UV/IR Block & AR Coating (Code: F200CLSCCD) for imaging emission nebulae in light polluted urban environments.

Software delivery: Downloaded online at www.altairastro.help and saved to hard drive.

Quick Start & AltairCapture instructions: Downloaded online at www.altairastro.help and saved to hard drive.

Warranty: 2 years manufacturer warranty against defects in materials and workmanship. Return to point of purchase.

Availability: If out of stock, click on the red "Notify when in stock" button above to receive an email when product is ready to ship.

Altair Astro and dealers reserve the right to change the product specification and/or price at any time without notice.
