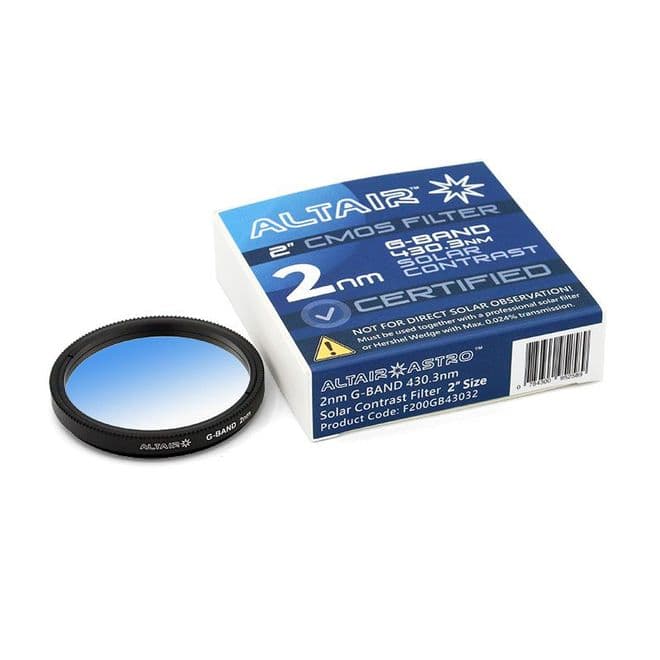

Altair 2nm G-Band Solar Contrast Filter - 2" 430.3nm

Product code: F200GB43032
in stock
[value]
£269.00 UK Price
£224.17 (ex. VAT) International Price
PayPal Checkout
You will earn 269 loyalty points with this purchase

Product information

Another first for solar astronomy, the Altair G-Band 2nm Solar filter enhances finer details in the solar photosphere.

Contrast is enhanced, giving improved visibility of faculae against the photosphere, and between umbral and penumbral features of a sunspot. The structural details visible within sunspots and their immediate surroundings is improved. Photosphere convection cells, also known as "granulation" are also enhanced.

This filter also offers an interesting challenge to solar imagers: Aside from contrast improvements, the G-Band filter may also reveal the elusive "bright spots" between solar convection cells with a reflector of 250mm aperture or more. These challenging structures are not often imaged by amateurs, but are now feasibly within reach. The appropriate Baader "imaging" ND3.8 solar film would need to be in place. All-mirror, open-tube designs such as Newtonian telescopes and Classical Cassegrains would be the ideal instrument to try this with. Talk to us about large custom solar filters.

Please note: This filter is designed to be used with a safe, professional brightness reduction filter, such as Baader Solar Film Filters (reflectors and refractors) or Herschel Wedge (refractors only). Baader "photographic" solar film would be slightly better, however normal film, or filters would also work well due, to the super high transmission of ~96%.

Each filter is provided with a high resolution spectrographic analysis, unique to that particular filter serial number.

IMPORTANT SAFETY INFORMATION: DO NOT USE THIS FILTER FOR DIRECT SOLAR OBSERVATION! Must be used together with a professional solar filter film or glass type, or Hershel Wedge with Max. 0.024% transmission placed BEFORE this filter. For reflecting telescopes, we recommend installing a solar film filter on the front of the telescope, then screwing the filter into a filter holder, camera, or eyepiece. For refractors, the G-Band filter should be positioned just in front of the camera or eyepiece with a Hershel Wedge in place ahead of it. Do not use this filter without a suitable solar pre-filter in place, because it will permanently damage your eyes or camera!

UV, IR and visual wavelengths are blocked, and only an ultra-narrow 2nm FHWM blue band at 430.3nm is transmitted to your camera. This greatly increases the contrast of solar features when observed or imaged with a colour or mono camera, revealing more detail in the solar photosphere.

A mono camera is recommended, such as the superfast Altair Hypercam 174M or ultrafast Altair GPCAM3 287M Mono USB3 Camera (AKA "Babyshark")

NOTE: Do not insert the filter before your Hershel Prism or it will melt, it should be placed just in front of the camera, AFTER THE HERSCHEL PRISM. For a Hypercam you can use an Altair Magnetic Filter holder with 2" filter slider (Search product code starting with "MAGF" and choose the correct thread for your camera).

Altair 2nm G-Band Solar Contrast Filter filter specifications:

  • Standard 2" Filter Threaded Aluminium Cell
  • CWL 430.3nm @ 96% transmission, tolerance 1%
  • FWHM 2nm, tolerance 0.5nm.
  • OD 6.5 Average blocking over 200-1100nm range. IR Blocked to 1100nm.
  • 1.85mm thick quartz λ/4, Parallelism (arcsec) 30"
  • Si02 "hard" overcoat with UVIR Block 300-1100nm and Anti-Reflection Coating
  • High resolution spectrographic test report included corresponding to each individual filter.

Altair Astro and Authorised Resellers reserve the right to change the product specification and price without notice.

Product Info

SKU F200GB43032
MPN F200GB43032
GTIN 0784300952589
Brand Altair
Product Code F200GB43032
Delivery Weight Package
0.5kg
