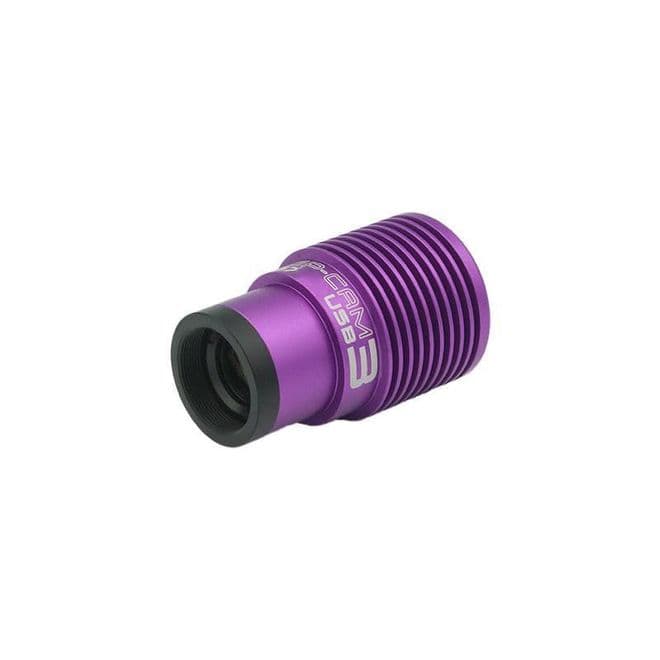

Altair 2210M Mono USB3 Guide Camera
Product information
The Altair 2210M mono camera has the latest SmartSens SC2210 BSI sensor with super high sensitivity in the visual spectrum and very high sensitivity in the red regions.
The pixel size of 4 microns makes this the ultimate small camera for autoguiding with an OAG Off Axis Guider, and the extremely fast frame rate of 150FPS at fill resolution would allow for high resolution lunar, planetary or solar imaging with the Daystar Quark or Altair Imaging Solar Wedges.
The Smartsens SC 2210 sensor has extremely high quantum efficiency peaking at approx. 92%, with G Sensitivity reputed to be at 20100mv/lux*s. In fact this sensor is designed for "starlight" use in near total darkness, and may even exceed the Altair 462 and 327 cameras in sensitivity, though not in dynamic range. Dynamic range is however not important for guiding.
Feature summary Altair 678M CMOS Camera:
SC 2210 Mono CMOS Sensor
1920 x 1080 pixel resolution:
4 um Square Pixels
1/1.8-inch Optical Format
12-bit ADC
512mb DDR3 Memory
G Sensitivity: 20100mv/lux*s
Low Noise: : 0.47 to 3.2e-
Fast Frame Rate 50 FPS in 8bit mode
Binning from 1x1 to 8x8 in either stacking or averaging modes.
Speed and reliability: USB3.0 format is fast yet stable, and a 512mb DDR3 Memory buffer enables faster more consistent frame rates.
Included software: The well featured intuitive AltairCapture software is included in a CD ROM, and can also be downloaded from www.altairastro.help. AltairCapture is a stable 64 bit Windows application, which allows full control of the camera in high speed video or still mode. It includes extensive automation features, and supports all the major file formats useful for astro imaging and professional scientific imaging in 14bit or 8bit mode.
SPECIAL OFFER! FREE 1 YEAR SharpCap PRO License included with all Altair GPCAM3 Cameras!
Furthermore, the popular PHD Guiding, SharpCap PRO, APT and NINA are also natively supported. ASCOM drivers are also available for download at www.altairastro.help where you can also get regular updates. The installation process is easy, and unlike with cheaper cameras, you don't need to be a computer expert to make your camera work. Just install the software on the CDROM, plug in the camera, and that's it.
Wide USB compatibility: Although the GPCAM3 is a USB3.0 camera, it's also fully compatible with USB2.0 ports when a longer cable and less speed are required, for example in deep-sky or video astronomy using the live stacking features in AltairCapture or Sharpcap.
Autoguiding: The camera has an ST4 auto-guiding port, and can be used to auto-guide with mounts from all the major manufacturers supporting ST4 format, including iOptron, Celestron and Skywatcher. The sensor is more than sensitive enough for autoguiding.
Support & warranty: Altair delivers proper on-shore English-speaking UK & EU support with a 2 year manufacturer warranty against defects in materials and workmanship. New users should check out the Altair Astro Facebook Group where you can get answers to technical questions, as well as sharing tips and techniques. AltairCapture software interface supports most European languages including English, German, French, Indonesian, Japanese, Korean, Polish, Chinese, Spanish, Thai, and Turkish.
File formats: The camera can be fully controlled in AltairCapture and SharpCap to output uncompressed .AVI and .SER video files for solar system imaging, as well as all common still image formats such as .JPEG .PNG .TIFF .BMP, and .FITS (for deepsky imaging) to mention just a few. Common astronomy file format information here.
Altair 2210M Mono USB3 Camera Technical Specification:
Sensor |
SmartSens SC2210 back illuminated sensor |
|
Diagonal |
8.81 mm |
|
Image Resolution |
2.1 mega pixels (1920*1080) |
|
Pixel Size |
4mm ´ 4mm |
|
Image Area |
7.68mm ´ 4.32mm |
|
Max FPS at Resolution (USB 3.0) |
12bit |
8bit |
92.8 FPS @ 1920*1080 113 FPS @ 960*540 |
150 FPS @ 1920*1080 184 FPS @ 960*540 |
|
Max FPS at Resolution (USB 2.0) |
14bit |
8bit |
9.2 FPS @ 1920*1080 11.3 FPS @ 960*540 |
15 FPS @ 1920*1080 18.4 FPS @ 960*540 |
|
Shutter Type |
Rolling shutter |
|
Exposure Time |
0.1ms – 500s |
|
Gain |
1x – 150x |
|
SNR |
39.3 dB |
|
Dynamic Range |
68.5 dB |
|
Read Noise |
3.2 – 0.47 e- |
|
QE Peak |
>92% |
|
Full Well |
8.5ke- |
|
ADC |
12bit |
|
DDR3 Buffer |
512MB (4Gb) |
|
Connection Port |
USB3.0/USB2.0 |
|
Camera Adaptor |
Standard 1.25’’ for telescope connection, and standard C adapter for industrial lens |
|
Protect Windows |
Clear Anti-Reflection Optical window |
|
Spectral Range |
380-1100nm (with included clear AR coated optical window) |
|
Capture/Control SDK |
Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.); |
|
Recording System |
Still picture and movie |
|
Camera Dimensions |
Diameter 37mm * height 72.4mm |
|
Camera Weight |
70 gram |
|
Back Focus Distance |
17.5mm with C adapter, 12.5 with CS adapter |
|
Cooling: |
Passive cooling |
|
Supported OS |
Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux |
Included in the box:
- Camera body.
- 1.5m USB cable.
- 1.5m ST4 guide cable.
- 1.25 inch x nosepiece with female 1.25" Astronomy filter thread on the front.
- (Optional 2" OD Nosepiece with dual 2 and 1.25" filter threads is available, code GPCAM-2IN)
- CS-Mount insert (12.5mm back-focus) is pre-installed on camera. (Optional 5mm extension adapter is available for C-Mount lenses requiring 17.5mm back-focus.)
- UV-IR Blocking or Clear AR Coated Front optical glass filter with Anti-Reflection coatings. (Removable for sensor cleaning or swappable).
- Plastic dust cap 1.25".
- Silicon dust cap for sensor.
- Software CD (Instructions online at www.altairastro.help )
Camera Back-focus & Adapter compatibility:
- Cover glass is removable for cleaning and can be swapped with a clear or UV/IR blocking glass as required. Choose Product code: OW-GP-UVIR or Product code: OW-GP-CLEAR.
- CS-mount lens compatibility: C-Mount male threaded lens with 12.5mm back-focus (or flange-distance) requirement.
- C-mount lens adapter 5mm extension: Optional
- C-mount lens compatibility: C-Mount male threaded lens with 17.5mm back-focus (or flange-distance) requirement.
- Astro filter thread adapter: Included, 1.25" OD and 2 OD (optional), Female thread
- Sensor surface distance from flat end of CS-mount adapter: 12.5 mm
- Sensor surface distance from flat end of 1.25" / M42 Astro adapter: 37 mm
Windows PC Hardware Requirements:
- Minimum PC: Equal to Intel i3 4GB+ RAM Windows 10 OS with separate graphics card.
- Recommended PC: ( 2013+ i5 4GB RAM Intel 1.0x USB Host Controller preferable with separate graphics)
- USB port compatibility: USB2.0 High-speed Port or USB3.0 High-speed Port
- (computers manufactured in 2013 or later give best USB speed).
- Monitor Display: 17" or Larger recommended.
- Software updates: Downloaded online at www.altairastro.help
Software & Operating System compatibility:
- Drivers & AltairCapture Windows software download: www.altairastro.help (opens new window).
- Camera direct support: ASCOM, PHD2, AltairCapture, SharpCap, NINA, APT, Firecapture.
- AltairCapture OS support: Win 11, Win 10
- NOTE: Windows 10 is recommended for best USB performance, with 2013 or later USB host controller v1.0 or later.
- SharpCap (a 3rd party application) is also fully supported and tested with native drivers.
- USB Port & Cable: 3.0 USB Cable, 1.5m cable (USB2.0 also supported at low frame rates).
- ST4 Port & Cable: Standard ST4 Opto-Isolated, 1.5m cable, iOptron, Celestron, Skywatcher SynScan GOTO.
- Camera Quick Start & AltairCapture instructions online at www.altairastro.help
Optional Accessories:
- 2 inch x 22mm nosepiece with dual 1.25" and 2 filter thread, code GPCAM-2IN. See associated products.
- C-Mount 5mm extension adapter for C-Mount lenses requiring 17.5mm back-focus.
- Spare Clear AR coated or UVIR coated optical windows available as spares.
- Altair Astro Premium 1.25" CLS-CCD Filter with UV/IR Block & AR Coating (Code: F125CLSCCD) for imaging emission nebulae in light polluted urban environments.
- Altair Astro Premium 2" CLS-CCD Filter with UV/IR Block & AR Coating (Code: F200CLSCCD) for imaging emission nebulae in light polluted urban environments.
Operating environment conditions:
- Max operating temp: 50 °C
- Lowest operating temp: -10 °C
- Max operating humidity: 80 % RH
- Power source in Volts: 5V DC (via USB cable)
Camera Quick Start & AltairCapture instructions online at www.altairastro.help
Worldwide Warranty: 2 years manufacturer warranty against defects in materials and workmanship. Return to point of purchase. Warranty is not transferable.
Availability: If out of stock, click the "Notify when in stock" button above to receive an email when product is ready to ship.
Note: Altair Astro and resellers reserve the right to change the product specification and/or price at any time without notice.
Product Info
MPN | ALTAIR2210M |
SKU | ALTAIR2210M |
GTIN | 0784300952671 |
Brand | Altair |
Product Code | ALTAIR2210M |
Delivery Weight Package
|
0.5kg |
